Seawater Desalination Filtration
Seawater Desalination Filtration Solutions for Reliable RO Membrane Protection
High flow and cartridge filtration solutions designed to reduce pressure drop increase, extend filter service life, and protect RO membranes in SWRO systems.

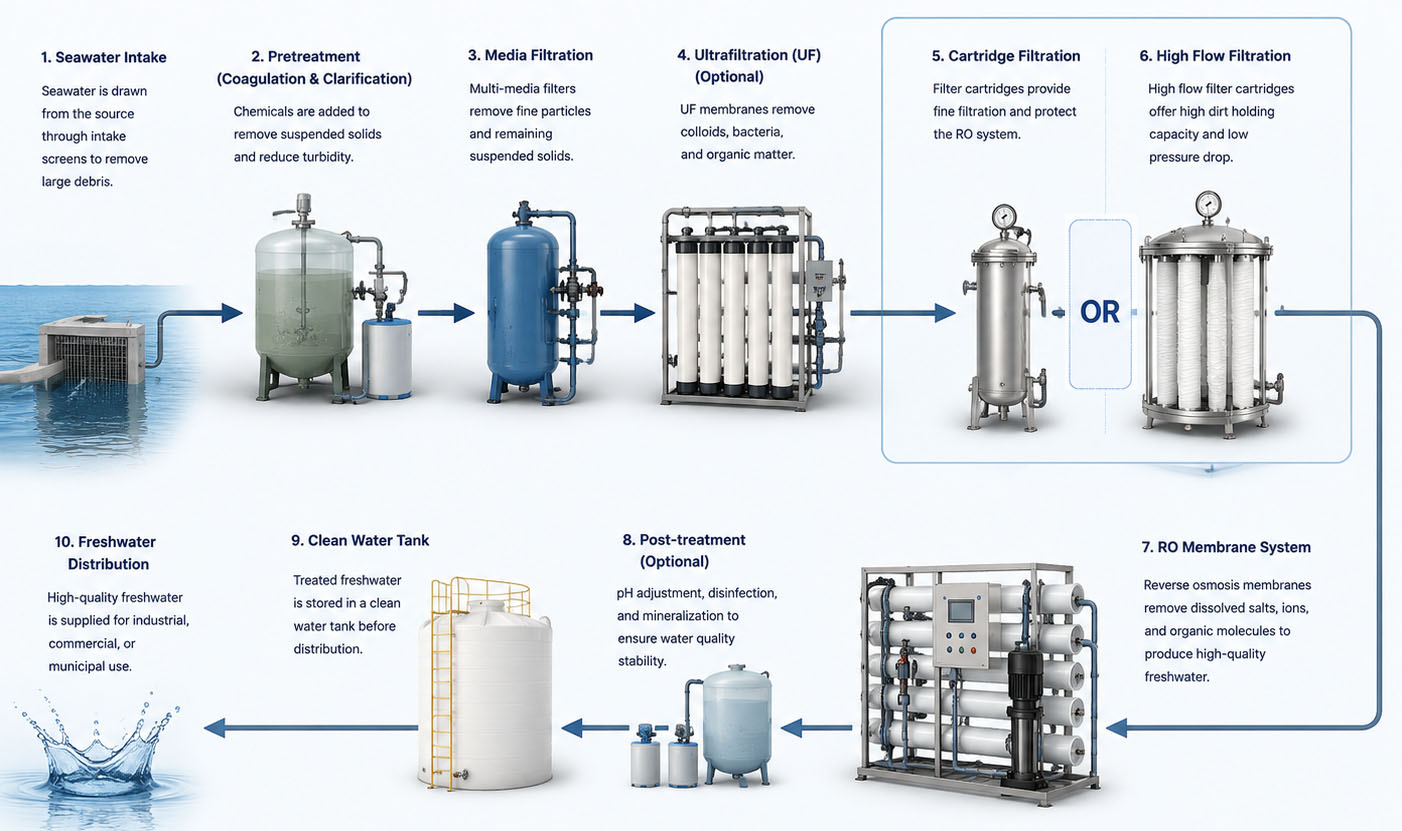

SWRO Pretreatment Process Overview
Common Challenges in SWRO Pretreatment
Rapid Pressure Drop Increase Before RO
Problem: ΔP increases rapidly
Filter replacement frequency increases
Maintenance workload increases
Causes:
High suspended solids loading
Colloidal particles
Algae residues
Short Cartridge Filter Service Life
Problem:
- Filters designed for 30 days last only a few days.
- High cartridge consumption.
- Increased operating cost.
Causes:
Conventional surface filtration media have limited contaminant holding capacity and become clogged quickly when pretreatment performance fluctuates.
RO Membrane Fouling Caused by Residual Particles
Problem:
- RO differential pressure increases.
- Permeate flow decreases.
- Cleaning frequency increases.
- Membrane life is shortened.
Causes:
Fine particles and colloidal contaminants passing through pretreatment reach the RO membranes, accelerating membrane fouling.
Excessive Maintenance in Large SWRO Plants
Problem:
- Hundreds of standard cartridges.
- Long replacement time.
- High labor costs.
- Frequent shutdowns.
Causes:
Traditional cartridge configurations require a large number of filter elements to handle high system flow rates.
Unstable Pretreatment Water Quality
Problem:
- Filter life changes significantly during algae blooms or seasonal water quality fluctuations.
- Pressure drop becomes unpredictable.
- Maintenance schedules become difficult to manage.
Causes:
Seasonal changes increase suspended solids, algae, and organic loading, creating unstable contaminant conditions before RO.
Our Solution
High Dirt Holding Capacity High Flow Filter Cartridge
Our gradient density depth filtration structure captures larger particles in the outer layers and finer particles in the inner layers, distributing contaminant loading throughout the media rather than only on the surface.
Benefits
- Lower pressure drop increase
- Longer filter service life
- Reduced replacement frequency
- More stable RO operation
High Capacity Depth Filtration
High Flow filter cartridges provide significantly higher dirt holding capacity, allowing more contaminants to be retained before replacement.
Benefits
- Extended service life
- Lower cartridge consumption
- Reduced maintenance costs
- Lower total operating cost
Reliable Final RO Protection
High-efficiency cartridge filtration removes remaining suspended solids before the high-pressure pump and RO membrane, providing the final protection barrier.
Benefits
- Reduced membrane fouling
- Lower cleaning frequency
- Longer membrane life
- Stable desalination performance
High Flow Cartridge Replacement
A single high flow cartridge can replace multiple conventional cartridges, significantly reducing the number of elements and simplifying maintenance.
Benefits
- Fewer cartridges
- Faster replacement
- Reduced maintenance time
- Lower labor costs
Stable Filtration Under Variable Water Conditions
Our depth filtration media maintain high contaminant loading capacity even when feed water quality changes, helping stabilize filtration performance.
Benefits
- Consistent filter performance
- Improved system reliability
- Better adaptation to seasonal water quality changes
- Reduced unexpected shutdowns
Our Filtration Solutions for SWRO Pretreatment
| Challenge | Recommended Solution |
|---|---|
| Rapid pressure drop increase | High Flow Depth Filter Cartridge |
| Short cartridge service life | High Dirt Holding Capacity Filter Cartridge |
| RO membrane fouling | High Efficiency Final RO Protection |
| Excessive maintenance | High Flow Cartridge Replacement |
| Variable seawater quality | Gradient Density Filtration Structure |
Recommended Filtration Solutions for Seawater Desalination
Common filters used in seawater desalination include high flow filter cartridges, PP pleated filter cartridges, melt blown filter cartridges and string wound filter cartridges. High flow filters are often used in large systems, pleated filters provide larger filtration area, melt blown filters offer economical depth filtration, and string wound filters can handle higher particle load.
High Flow Water Filter for Desalination Industry⭐⭐⭐⭐⭐
Final pretreatment before RO membranes
Advantages：High dirt holding capacity
Low pressure drop
Long service life
Reduced cartridge quantity
Ideal for large SWRO plants
Typical Replacement：Pall HFU620/Pall HFU640/Pall HFU660/Parker ParMax/3M High Flow/Pall HFU620/Pall HFU640/Pall HFU660/Parker ParMax/3M High Flow
Pleated Water Filters for Desalination Industry⭐⭐⭐⭐
Application：Final polishing filtration before RO
Advantages：High filtration efficiency
Stable micron rating
Suitable for security filtration
Available in DOE / SOE configurations
Depth Pleated Filter Cartridge⭐⭐⭐⭐
Application:Pretreatment with higher suspended solids loading
Advantages:Gradient density,
Higher contaminant capacity
Lower pressure drop increase
Longer service life
Filter Bag
Application： Coarse particle removal before multimedia filtration or dissolved air flotation (DAF), helping reduce the contaminant load on downstream pretreatment equipment.
Advantages：
- Removes sand, shell fragments, algae, and suspended solids
- Reduces loading on multimedia filters and cartridge filters
- Extends the service life of downstream filtration equipment
- Handles high solids loading with low operating cost
Related Filtration Problems
Why Filter Cartridges Clog Quickly
Why Does Pressure Drop Increase Quickly?
High Flow vs Standard Filter Cartridge
FAQ
What is the purpose of cartridge filtration in seawater desalination?
Cartridge filtration removes residual suspended solids before RO to protect membranes.
What micron filter is used before RO?
Typically 1–5 micron depending on pretreatment quality.
Why do SWRO cartridge filters clog quickly?
Usually caused by high suspended solids loading, poor pretreatment performance, or insufficient dirt holding capacity.
Can high flow cartridges replace standard cartridges?
Yes, in many high-flow SWRO applications, high flow cartridges reduce cartridge quantity and maintenance frequency.
