Food & Beverage Filtration Solutions
Filtration Solutions for Bottled Water, Soft Drinks,
Breweries, Wineries, Dairy and Process Water Systems.
What Is Food & Beverage Filtration?
Food and beverage filtration is used to remove suspended solids, microorganisms, colloids, haze-forming particles and process contaminants from water, beverages and food production systems.
Typical applications include:
✔ Bottled Water✔ Soft Drinks✔ Beer✔ Wine✔ Dairy✔ Process Water✔ Ingredient Filtration✔ CIP Water Systems
Common Filtration Problems
Rapid Cartridge Fouling
Filters clog much faster than expected.
Product Haze & Poor Clarity
Fine particles remain suspended.
Frequent Production Interruptions
Unexpected filter replacement increases downtime.
High Operating Cost
Short filter life drives up consumable expenses.
Membrane Fouling in RO Systems
Pretreatment instability impacts downstream performance.
Why Do These Problems Occur?
Surface Blinding
Contaminants accumulate on the outer layer before the media depth is utilized.
High Organic Loading
Proteins, yeast, sugars and colloids rapidly increase differential pressure.
Incorrect Filter Structure
Micron rating alone does not determine filter life.
Seasonal Water Quality Variations
Raw water fluctuations affect filtration stability.
How Our Filtration Structure Helps
Gradient Density Media
Promotes true depth loading.
Large Effective Filtration Area
Reduces initial pressure drop.
Reinforced Support Structure
Maintains integrity during production cycles.
FDA-Compliant Materials
Suitable for food-contact applications.
Food & Beverage Filtration Applications

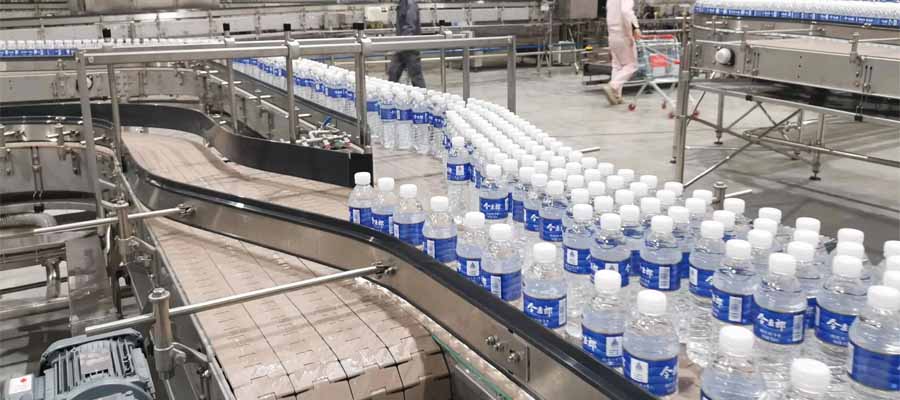

Bottled Water Filtration
Problem:Fine particles and microbial contamination.Filtration Points:RO Pretreatment– Final Polishing– Bottle Filling Protection

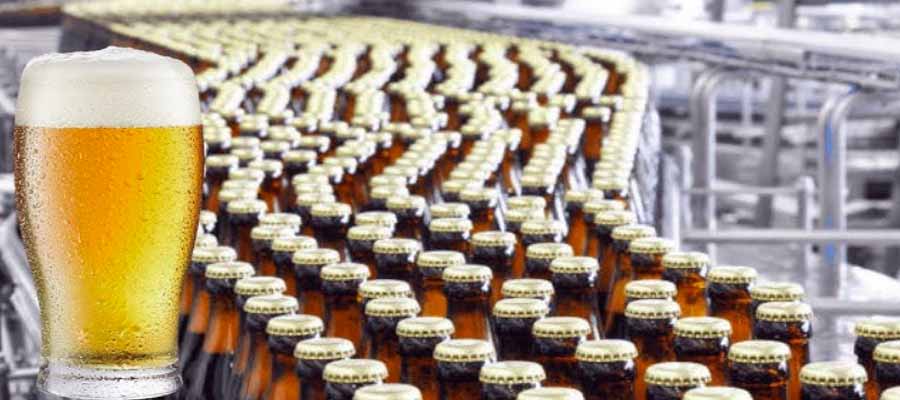

Brewery Filtration
Problem:Yeast carryover and haze formation.Filtration Points:Beer Clarification–Final Sterile Filtration–CIP Water

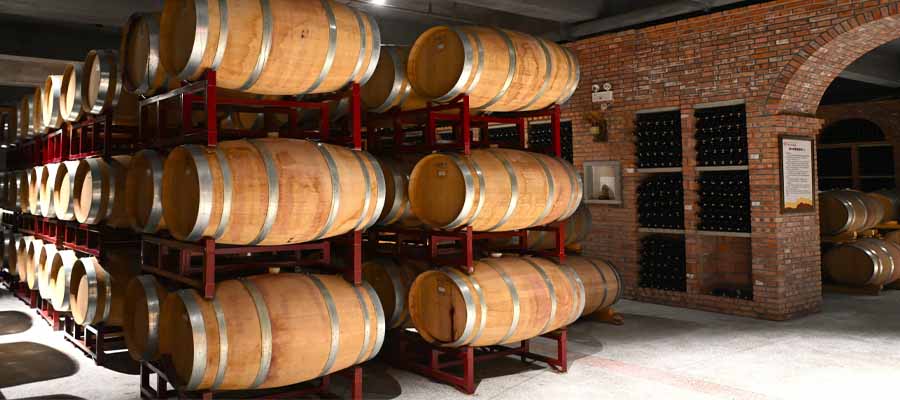

Winery Filtration
Problem:Sediment and microbial stability.
Filtration Points:Pre-Filtration-Wine Clarification–Final Filtration

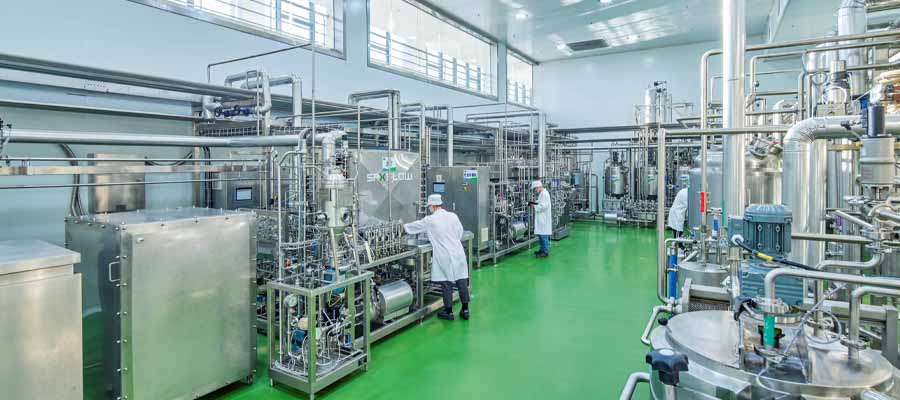

Dairy Processing
Problem:High viscosity and hygiene requirements.
Filtration Points:Ingredient Filtration–Process Water–Cleaning Systems
Common Filtration Challenges in Food & Beverage Plants
- Microbial contamination
- Product haze
- Frequent cartridge replacement
- Pressure drop increase
- Process interruptions
- High operating cost
Recommended Food and Beverage Filters
High Flow Water Filter for Food & Beverage Industry
Our high flow filter cartridge is a versatile solution, ideally suited for reverse osmosis system prefiltration, process water purification, seawater desalination pre-treatment, and more. In the petroleum and chemical industries, our filter cartridge is suitable for filtering a wide range of solvents and chemicals with filtration precision as fine as 0.5μm, contributing to safe and consistent production processes.
Our high flow filter cartridges are available in standard models and can be customized to suit your specific requirements. Count on our high flow filter cartridge for your industrial filtration needs and experience superior efficiency and long-lasting performance.

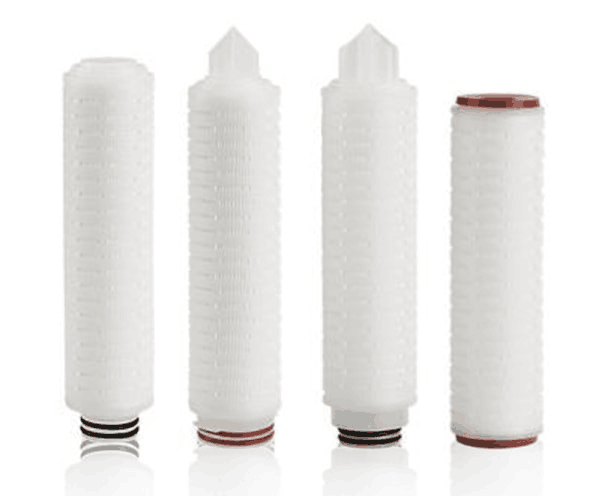

Pleated Water Filters for Food & Beverage Industry
Discover a superior solution for precise filtration with our pleated filter cartridges. Engineered to meet the demanding filtration needs, our pleated filter cartridges are crafted using high-quality materials such as polypropylene and nanofibers. With micron ratings as low as 0.1μm, they provide superior performance for various industries.
Our pleated filter cartridges are an ideal choice for industries requiring precise filtration, such as food processing, pharmaceuticals, and beverage production. Whether it’s maintaining the purity of beverages and dairy products or ensuring the high standards in beer brewing, our pleated filter cartridges deliver consistent and reliable results.
Why Food Manufacturers Work With Us
✓ FDA Compliant Materials
✓ ISO 9001 Manufacturing
✓ NSF Materials Available
✓ SGS Testing Support
✓ Engineering Selection Assistance
✓ Sample Evaluation Available
FAQ
1. What filtration is commonly used in food and beverage processing?
Food and beverage manufacturers typically use a combination of multimedia filtration, activated carbon filtration, membrane systems, and cartridge filtration to remove suspended solids, microorganisms, colloids, and process contaminants.
The exact filtration configuration depends on the product being produced, such as bottled water, beer, wine, dairy products, or soft drinks.
2. Why do filter cartridges clog so quickly in beverage production?
Rapid cartridge fouling is often caused by high organic loading, suspended solids, yeast, proteins, colloids, or unstable pretreatment conditions.
In many cases, premature pressure drop increase is related not only to micron rating but also to filter structure and contaminant distribution inside the media.
3. How can filtration help improve beverage clarity?
Filtration removes haze-forming particles, suspended solids, and fine contaminants that affect product appearance.
Proper filtration can improve product clarity, consistency, and overall consumer acceptance while reducing downstream quality issues.
4. What filtration challenges are common in breweries and wineries?
Breweries and wineries commonly face:
• Yeast carryover
• Product haze
• Fine sediment
• Rapid differential pressure increase
• Frequent filter replacement
Proper filtration design helps improve product stability while maintaining production efficiency.
5. How do I select the correct filter micron rating?
Micron selection depends on:
• Product type
• Required product clarity
• Contaminant characteristics
• Flow rate
• Downstream process requirements
Selecting a smaller micron rating does not always result in longer filter life. In many systems, filter structure and dirt-holding capacity are equally important.
6. What is the difference between process water filtration and final product filtration?
Process water filtration focuses on protecting production equipment and maintaining water quality throughout the manufacturing process.
Final product filtration focuses on removing fine particles and microorganisms before packaging to ensure product quality and shelf stability.
7. Can high flow filter cartridges be used in food and beverage applications?
Yes.
High flow filter cartridges are commonly used in bottled water plants, RO pretreatment systems, process water filtration, and other high-flow applications where low pressure drop and high dirt-holding capacity are important.
