Why Fine Ferric Colloids Rapidly Overload RO Security Filters
Fine Ferric Colloids Often Cause Rapid Surface Fouling Instead of Stable Depth Loading

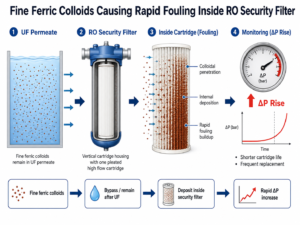

In many RO pretreatment systems, fine ferric colloids can rapidly overload security filters even when turbidity appears relatively low.
Unlike larger suspended solids, ferric colloids are extremely small and difficult to distribute evenly through the filter depth. Once these particles concentrate mainly on the outer media layer, rapid surface blinding and unstable ΔP increase often occur.
【Onsite Evidence Suggestion】
ΔPchange ：Pressure drop remained stable for 9–11 days previously, but shortened to less than 48 hours during seasonal iron colloid fluctuation.
ΔP increased from 0.12 bar to 0.48 bar within 18 hours after UF recovery instability appeared.
cartridgeShortened lifetime situation: lifetime shortened by 30%，Cartridge service life was reduced from around 3 weeks to less than 1 week after fine iron colloids entered the RO security filter.
The occurrence time of UF fluctuations：The ΔP rise appeared 8–12 hours after UF permeate instability, suggesting that the security filter was reacting to upstream colloidal breakthrough.
- The actual filtration cycle varies：The filtration cycle changed from scheduled replacement every 20–25 days to reactive replacement every 5-6 days due to rapid ΔP increase.
What Operators Usually Observe
Operators commonly notice:
- rapid ΔP increase
- reddish-brown fouling on outer pleats
- slimy or compact deposits
- shortened cartridge lifetime
- unstable replacement intervals
- uneven fouling distribution
In many cases, the outer pleat layer appears heavily blocked while inner filtration layers remain relatively clean.
“Removed cartridges showed reddish-brown deposits concentrated mainly within the first 3–5 mm of the outer pleat surface.”
![Surface fouling caused by ferric colloids on pleated high flow filter]
What Usually Causes It
Unstable UF Permeate Quality
When UF stability weakens, fine ferric particles may bypass upstream filtration and enter the RO security filter directly.
【Onsite Evidence Suggestion】
UF recovery changes：UF recovery dropped from around 90% to 80%, indicating that the UF system was no longer operating under stable permeability conditions.
UF backwash exception：UF backwash became more frequent, and TMP could not return to its normal baseline after backwash. This suggests unstable solids loading and possible colloidal breakthrough risk.
SDI fluctuation：Normal SDI15: 2.5–3.0
During UF instability: increased to 4.5–5.0
Security filter ΔP rose within 12–24 hours
Turbidity changes：urbidity increased from 1.2NTU to 2.0 NTU. In some cases, turbidity may remain relatively low while SDI rises, because fine colloids can affect membrane fouling risk more strongly than visible suspended solids.
Poor Floc Formation
Incomplete coagulation or oxidation reactions may leave extremely fine ferric colloids suspended in the water stream.
These particles are often too small to settle uniformly through the filter depth.
【Onsite Evidence Suggestion】
Recent chemical dosing records should be checked, especially any adjustment in coagulant, polymer, oxidant, or pH control. A small dosing change may shift ferric particles from larger settleable flocs to fine suspended colloids“Ferric colloid fouling increased significantly after coagulant dosage adjustment.”
Surface Blinding
Ferric colloids frequently accumulate mainly on the outer filtration surface instead of distributing gradually through the media depth.
Once surface pores become blocked, ΔP rises rapidly even though the internal media remains partially unused.
【Onsite Evidence Suggestion】
Onsite Evidence Suggestion
To confirm surface blinding, the used cartridge should be opened and inspected carefully. Useful evidence includes whether the pleat depth remains clean, whether a sticky gel-like layer has formed on the outer surface, and whether the fouling pattern is uniform across the cartridge.
If the outer surface is covered by a brown sticky layer while the inner pleat depth remains relatively clean, the cartridge is likely failing from premature surface blinding rather than full media depth saturation.
A uniform fouling pattern usually suggests colloidal loading across the filter surface, while localized fouling may indicate flow maldistribution, sealing problems, or uneven loading inside the housing.

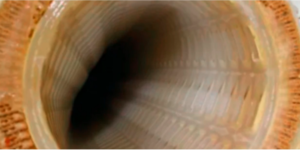

“Inner pleats remained relatively clean while the outer layer formed a dense fouling cake.”
![Ferric colloids concentrated on outer filter surface causing rapid pressure drop increase]
What Should Be Checked Onsite
Cartridge Inspection
After cartridge removal, check:
- fouling color
- contaminant penetration depth
- slime or dry deposits
- pleat deformation
- uneven fouling pattern
Operating Trend Review
Review:
- ΔP trend
- SDI fluctuation
- iron concentration changes
- UF recovery trend
- chemical dosing adjustment
Rapid ΔP spikes often indicate unstable contaminant distribution rather than normal depth-loading behavior.
1.Normal stage
It took 7 days for ΔP to increase from 0.12 bar to 0.25 bar.
It indicates that the filter element is in a normal deep dirt-holding state.
- Upstream abnormal stage
The SDI rose from 2.8 to 4.9.
Turbidity has only undergone minor changes.
Iron concentration increases.
It indicates an increased risk of fine iron colloids, but turbidity may not be significantly manifested. - Filter element response stage
ΔP rose from 0.25 bar to 0.85 bar within 24 to 36 hours.
It indicates that the filter element is not clogged slowly as usual, but is rapidly sealed on the surface by fine colloids.
Engineering Insight
Fine ferric colloids often overload RO security filters not because the total solids load is extremely high, but because the particles are too fine to distribute efficiently through the filtration depth.
Once ferric colloids concentrate mainly on the outer media layer, premature surface blinding occurs rapidly.
This usually results in:
- unstable ΔP growth
- low dirt-holding utilization
- shortened cartridge life
- unstable RO pretreatment operation
| Onsite Symptom | Possible Cause | What to Check |
|---|---|---|
| Rapid ΔP increase | Surface blinding | Inspect outer pleat fouling |
| Reddish fouling layer | Ferric colloids | Review iron carryover |
| Uneven cartridge loading | Flow maldistribution | Check contaminant penetration |
| Short cartridge life | UF instability | Review SDI and UF trend |
FAQ
Why do ferric colloids cause rapid ΔP increase?
Because fine ferric particles often accumulate mainly on the outer filter surface instead of penetrating gradually through the media depth.
What does reddish-brown fouling usually indicate?
It often suggests iron oxide or ferric colloid accumulation inside the RO pretreatment system.
Can UF instability increase ferric colloid carryover?
Yes. Unstable UF performance may allow more fine ferric particles to pass downstream into the security filter.
Engineering Perspective
In many RO systems, ferric colloid fouling is primarily a contaminant distribution problem rather than simply a micron rating problem.
Stable depth loading and controlled contaminant penetration are often critical for maintaining stable ΔP behavior and longer cartridge life.
