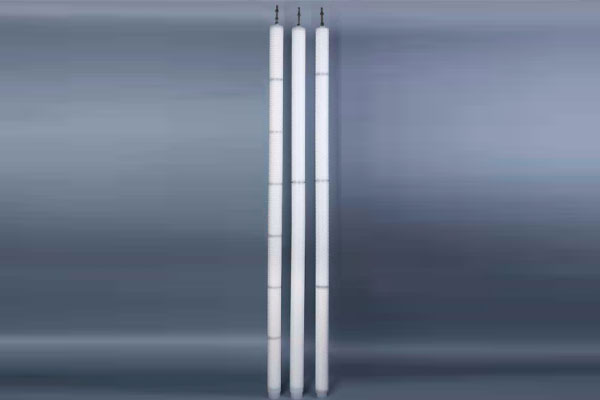

HFZ Series Washable Pleated Filter Cartridge - Specialized for Condensate Polishing
The most widely used pre-filter for condensate polishing systems in power plants. High-throughput, high-strength, and fully backwashable for maximum operational efficiency
Trust Badges : FDA | CE | ISO 9001:2015 | NSF | SGS
Product Overview
General Description: Made of pleated high-precision polypropylene membrane, hot-melt welded without any additives or adhesives 。Ensures low extractables and low initial pressure drop.
Core Advantage: Features an integral support design with a large filtration area and long service life .Supports a simple system setup with no acid or alkali consumption for regeneration .
Technical Specifications
- Outside Diameter: 69mm/65mm
- Standard Length: 70\inch
- Filter Media: High-precision Polypropylene (PP)
- Max Operating Temperature: 85\ °C
- Design Flow Rate: Recommended $3.9 m³/h per element
- Connection Type: Internal thread (1 1/2″-12) or External thread (M33 x 1.5)
Performance Data Verification
Ordering Information
| HFZ | PP | 0500 | 70 | II | Z1 | W1 |
| Series | Material | Micron (μm) | Length (in.) | Structure Type | Connection Thread | Bottom Thread |
|---|---|---|---|---|---|---|
| HFZ | PP: Polypropylene |
|
|
|
|
|
Typical Applications
Power Generation: Condensate water filtration for 600MW supercritical and 1000MW ultra-supercritical units.
Water Treatment: Desalination and RO pre-filtration.
Petrochemical: Iron removal and petrochemical water treatment.
