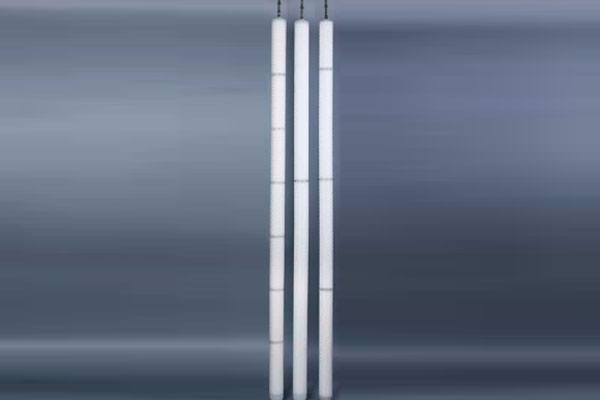

HFX Series String Wound Filter Cartridge - High-Strength Depth Filtration
Up to 70 inches in length for massive throughput and high dirt-holding capacity. Engineered for harsh processing conditions without fiber deformation 。
Trust Badges : FDA | CE | ISO 9001:2015 | NSF | SGS
Product Overview
A washable depth filter cartridge made of high-performance fibers wrapped on a porous PP or SS skeleton .Effective at removing suspended solids, particulates, rust, and debris .
Core Advantage: Simple structure that requires no acid or alkali consumption for regeneration.Even under high pressure and temperature, the fibers remain stable with no shedding .
Technical Specifications
| Parameter | Specification |
|---|---|
| Outside Diameter | 50 mm / 60 mm |
| Available Lengths | 60", 70" |
| Filter Media | Polypropylene, Cotton, Glass Fiber, or Organic Fiber |
| Support Core | Stainless Steel 304 or 316 |
| Max Operating Temperature | Up to 250°C |
| Connection Thread | M33 x 1.5, M33 x 2, G1", or 13/16"-24 BSW |
Performance Data Verification
Ordering Information
| HFX | PP | 0500 | 70 | S1 | Z1 | W1 |
| Series | Material | Micron (μm) | Length (in.) | Support | Connection Thread | Bottom Thread |
|---|---|---|---|---|---|---|
| HFX |
|
|
|
|
|
|
Typical Applications
Power Generation: Condensation water filtration in power plants
Water Treatment: RO pre-filtration and desalination pretreatment .
Petrochemical: Paints, coatings, refining, and petrochemical processes.
Electronics: Microelectronics, films, fibers, and resins.
