HSC Series Stainless Steel Pleated Filter Cartridge

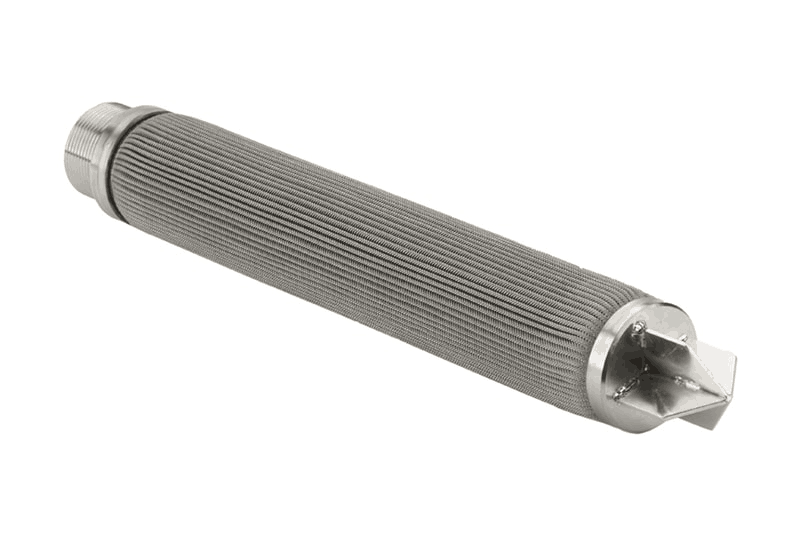

The HSC series stainless steel mesh pleated filter cartridges are made of stainless steel woven mesh with pleats. Compared with cylindrical filter cartridges, they have a larger filtration area and significant advantages in terms of lifespan and throughput.
Specification
| Standard Diameter | 65mm (Customizable) | ||||||||||||||||||||||||||||||||||
| Standard Length | 5" (127mm) | 10" (254mm) | 20" (508mm) | 30" (762mm) | 40" (1016mm) | ||||||||||||||||||||||||||||||
| Filtration Area | 0.096 m² | 0.19 m² | 0.38 m² | 0.57 m² | 0.76 m² | ||||||||||||||||||||||||||||||
| Liquid Micron Rating (μm) | 2 | 5 | 10 | 20 | 40 | 100 | |||||||||||||||||||||||||||||
| Gas Micron Rating (μm) | 0.8 | 1 | 3 | 15 | 25 | 85 | |||||||||||||||||||||||||||||
| Average Permeability L/m²·s | 3.92 | 4.03 | 5 | 7.5 | 11.8 | 27 | |||||||||||||||||||||||||||||
| Liquid Flow m³/h | 1.8 | 2.0 | 2.1 | 2.5 | 3.5 | 5.0 | |||||||||||||||||||||||||||||
| Max. Operating Temperature | 480°C | ||||||||||||||||||||||||||||||||||
| Max. Differential Pressure | 8.6 bar | ||||||||||||||||||||||||||||||||||
Note:
Bubble Point Pressure Test: Compliant with ISO 4003
Permeability Test: Compliant with ISO 4022 (Average permeability determined at 200Pa air pressure)
All filtration tests are conducted on a 65mm diameter, 10″ filter cartridge with 1.0bar pressure and liquid viscosity of 1CP·S.
Application
- Steam and oxidative liquid filtration
- Filtration of strong polar solvents and corrosive liquids
- Decarbonization filtration of liquids
- Filtration of high-temperature and high-pressure liquids and gases
FAQ
Q1: What are the primary materials of construction for the HSC series filter cartridges? A: The HSC series features a robust, all-stainless steel construction designed for maximum durability. The inner and outer support frames are made of SUS 304/316 porous stainless steel plate. The filtration core consists of premium stainless steel woven mesh, including a 30-mesh or 40-mesh protective mesh and lining mesh, combined with a high-precision filter mesh tailored to your specific micron rating requirements.
Q2: What are the advantages of the pleated design compared to standard cylindrical filters? A: The pleated design significantly expands the effective filtration area within the same footprint. For example, a 40-inch cartridge delivers a filtration area of up to 0.76 m². This expanded surface area ensures a much higher flow rate, minimizes initial system resistance, and provides a significantly longer lifespan, which directly reduces downtime and maintenance costs.
Q3: What is the maximum operating temperature and maximum allowable △P for this cartridge? A: Thanks to its high-strength, weld-bonded all-metal structure, the HSC series excels in extremely harsh industrial environments. It can withstand a maximum operating temperature of up to 480°C and a maximum differential pressure (△P) of 8.6 bar.
Q4: Are the dimensions and filtration ratings customizable? A: Yes, we offer extensive customization options to fit your specific housing and process needs. While the standard outer diameter is 65mm (customizable), standard lengths range from 5″ (127mm) up to 40″ (1016mm). In terms of micron ratings, we offer:
Liquid Micron Rating: 2µm, 5µm, 10µm, 20µm, 40µm, and 100µm.
Gas Micron Rating: 0.8µm, 1µm, 3µm, 15µm, 25µm, and 85µm.
Q5: How do you verify and guarantee the performance and quality of these filter cartridges? A: Every batch of our filter cartridges undergoes strict standardized testing to ensure industrial-grade reliability. Our Bubble Point Pressure Test complies fully with ISO 4003 to verify pore integrity, and our Permeability Test is compliant with ISO 4022 (with average permeability precisely determined at 200Pa air pressure). This ensures consistent flow performance and absolute rating accuracy before shipping.
