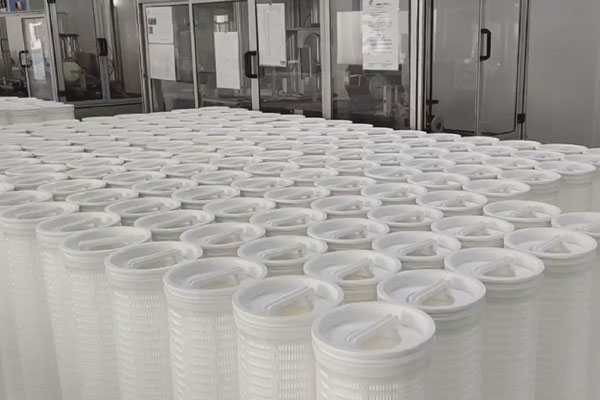

Premium 1:1 Replacement for 3M™ High Flow Series (HF40 / HF60)
Upgrade to our HFL Series featuring Multi-layer Gradient Density technology. Achieve exact fit-compatibility with 3M’s unique end-cap sealing while benefiting from a 100% Surfactant-Free and FDA Compliant construction.
FDA Compliant | Surfactant-Free | ISO 9001:2015 | CE Certified
The "Perfect Fit" Engineering
Seamless Integration with 3M™ Systems
- Unique End-Cap Sealing: Our HFL series is engineered to match the specific radial seal design of the 3M™ High Flow housing. We ensure a zero-bypass performance, mirroring the 3M™ HF40 and HF60 physical dimensions.
- Standard Lengths: Available in precise 40-inch (HF40) and 60-inch (HF60) configurations for direct drop-in replacement without housing modification.
- Inside-to-Outside Flow: Maintains the native 3M™ flow logic, ensuring all contaminants are trapped inside the element during change-out.
Material Purity & Safety
Surfactant-Free & FDA Compliant Construction
- No Chemical Additives: Just like the 3M™ original, our HFL series is Surfactant-Free. We utilize 100% thermal bonding technology—meaning no glues, binders, or adhesives are used.
- Pure Polypropylene: All materials are FDA Compliant for food and beverage contact.
- Cleanroom Manufacturing: Produced in a Class 100,000 cleanroom to ensure extremely low extractable levels, making it safe for high-purity water and pharmaceutical processes.
Our Technical Edge
Exclusive Multi-layer Gradient Density Structure While 3M™ offers high flow, our HFL series takes performance further with a Multi-layer Gradient Density Structure:
- Step-by-Step Particle Capture: The fibers transition from coarse (outer layers) to fine (inner layers). This allows the filter to act as a pre-filter and a final filter in one.
- Extended Service Life: By distributing the solids loading throughout the entire depth of the media, our structure prevents premature surface blinding, offering up to 15% longer life than standard single-layer pleated filters.
- High Dirt Holding Capacity: Specifically designed for fluids with high suspended solids or varying particle size distributions.
Performance Data & Ordering
| Micron Ratings: | 0.1 μm to 100 μm (Absolute) ▶ Precise Control |
| Max. Flow Rate: | Up to 110 m³/h (for 60" element) ▶ High Throughput |
| Max. Temperature: | 82°C (PP) / 121°C (GF) (Polypropylene) ▶ Industrial Standard |
| Filtration Area: | Up to 7M²per 40'' (or 10.5M²per 60'') element ▶ Low Flux per m² (Extended Life) |
Ordering Information (3M™ Replacement Guide)
| Series | Material | Micron (μm) | Length (in.) | Support | Seals |
|---|---|---|---|---|---|
| HFL |
|
|
|
|
|
FAQ
Q: Does the HFL replacement filter require a special adapter for 3M™ housings?
A: No. Our end-cap is an exact 1:1 replica of the 3M™ HF series seal, ensuring it locks into the original manifold without any extra hardware.
Q: How do you guarantee the filter is “Surfactant-Free”?
A: We use advanced thermal welding for the end-caps and media seams. This process uses heat and pressure instead of chemicals or glues, eliminating any risk of surfactant leaching.
Q: Will the Gradient Density structure affect my flow rate?
A: On the contrary, the multi-layer gradient structure reduces the initial pressure drop by optimizing the distribution of particles, often resulting in a smoother flow profile than standard pleated filters.
A: On the contrary, the multi-layer gradient structure reduces the initial pressure drop by optimizing the distribution of particles, often resulting in a smoother flow profile than standard pleated filters.
Q: Is this filter compatible with high-viscosity chemicals?
A: Yes. The reinforced polypropylene construction provides broad chemical compatibility, making it suitable for acids, bases, and many solvents.
