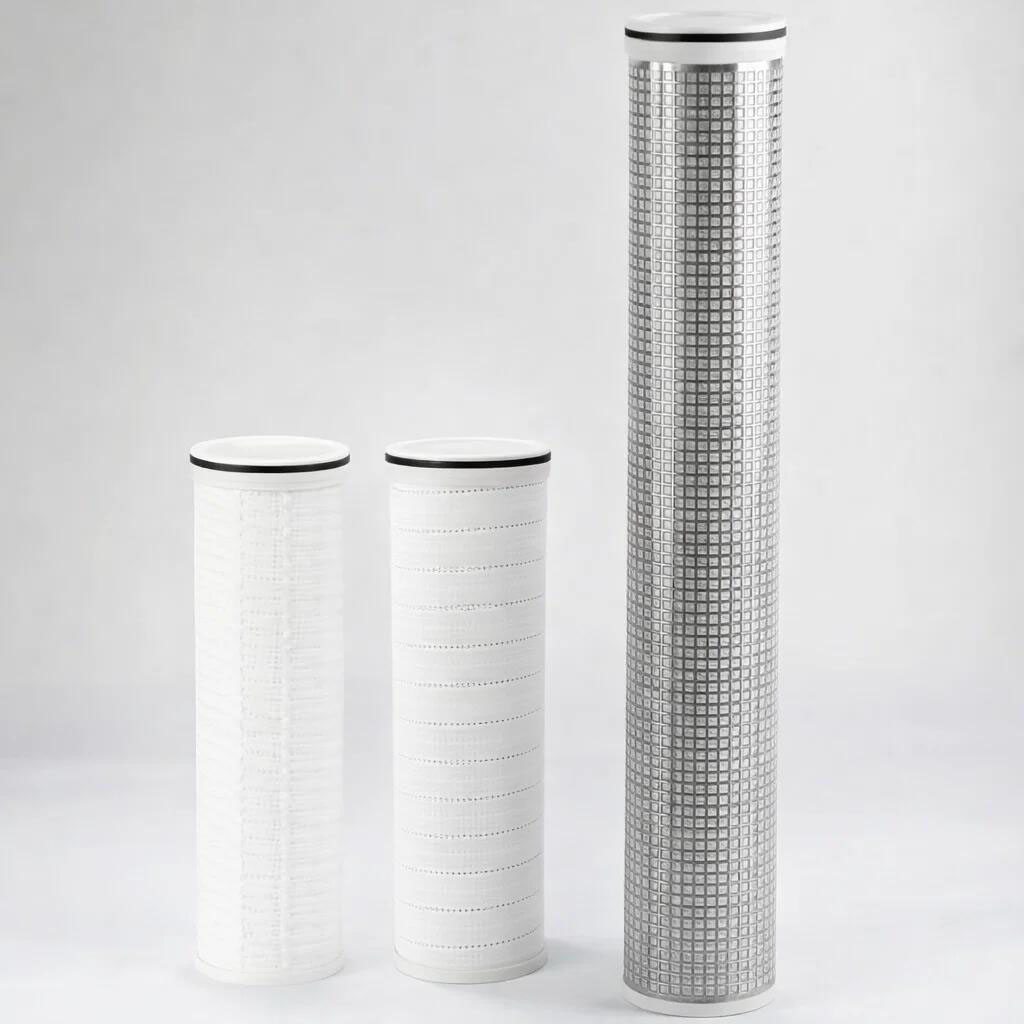

Pall Vector Series Replacement - HF/HFLH High Capacity Filters
HFLH High Flow Filter Cartridges are used for coarse filtration in high flow applications in the oil, gas, and chemical industries. These high-efficiency filters utilize unique technology with felt media made from polyester or polypropylene to extend the on-stream service life of your process applications.
ecofiltrone HFLH High High Flow elements are available in 20, 40, 60, and 80-inch lengths with media and hardware configurations that allow for broad temperature and chemical compatibility
Technical Compatibility: Ecofiltrone HFLH vs. Pall Vector
| Benchmarking Metric | Pall Vector® Series (VNT/VFT) | Ecofiltrone HFLH Series | Conclusion / Match |
|---|---|---|---|
| Flow Direction | Outside-to-Inside | Outside-to-Inside (Native) | 100% Housing Compatibility |
| Outer Diameter | 152.4 mm (6") | 152.4 mm (6") | Perfect Drop-in Fit |
| Inner Support | High-strength Core | Reinforced PP Center Core | Structural Integrity Match |
| Filtration Type | Deep Pleated / Depth | Deep Pleated PP / GF | Identical Process Logic |
| Max. Temp (PP) | 82°C | 82°C | Thermal Limit Match |
| Max. Temp (GF) | 121°C | 121°C | High-Temp Capability Match |
| Max. Operating ΔP | 3.44 bar | 3.44 bar | Pressure Resistance Match |
Pall Vector High Flow Filter Part Number Cross-Reference Guide
| Pall Vector Replacement | Media Material | Ecofiltrone HF/HFLH Replacement Code | Typical Applications |
|---|---|---|---|
| POV101UVPFA | Standard PP | HFPP0100AOGV | RO Pre-filtration, Amine Loops |
| POV251UVPFA | High-Temp GF | HFGF0250AOGV | Condensate Treatment, Power Plants |
Order Information
| Series | Type | Media | Filtration Rating | Length | External Structure | O-ring Material | End Cap Configuration |
|---|---|---|---|---|---|---|---|
| HF |
|
|
|
|
|
|
|
Performance & Engineering Advantages
High-Strength Center Core Design
- Structural Reliability: Unlike standard high-flow filters, our PHF series features a reinforced PP center core specifically designed to withstand the inward pressure of Outside-to-Inside flow.
- Bypass Prevention: Precision end-cap welding using hot-melt technology ensures zero bypass leakage even under maximum differential pressure.
Advanced Deep Pleated Technology
- Increased Area: Our “W” Type pleated technique significantly expands the effective filtration area, reaching up to 6 m² per 40″ element
- Extended Service Life: High-density pleating allows for superior dirt-holding capacity, reducing the frequency of filter change-outs
- Versatile Media: Available in standard Polypropylene (82°C) or Glass Fiber (121°C) to match specific chemical and thermal requirements
| Specifications (Diameter × Length) |
Design Flow Rate (m3/h) |
Maximum Flow Rate (m3/h) |
Filtration Area (m2) |
|---|---|---|---|
| 6" × 20" | 15 | 40 | 2.6 |
| 6" × 40" | 30 | 80 | 5.2 |
| 6" × 60" | 45 | 120 | 7.8 |
| Parameter | Specifications |
|---|---|
| Maximum Operating Temperature |
PP: 82°C FO: 120°C GF: 121°C |
| Maximum Differential Pressure |
PP: 3.44 bar / 21°C FO: 3.44 bar / 120°C GF: 3.44 bar / 121°C |
Oil & Gas:
- Condensate feed
- Gas filtration
- Natural gas transportation pipeline
- Wastewater filtration
- Frac water disposal
- Produced water
- General disposal well protection
- Diesel
- Gasoline
- Kerosene
- LPG final product filtration
- Hydrotreater feed filter
- Amine loop filter
Paint/Automotive:
- Paint feedstocks
- Intermediates
- Final products
Chemicals:
- Epoxy resin
- Disposal wells
- Feed streams
- Industrial resins and coatings
- Agricultural chemicals
- Acids
- Alkalis
- Solvents
- Silicone solutions
- Water treatment
- Final product
- Tank car loading and unloading
Pulp & Paper:
- White liquor
- Black liquor
- Demin water
- Shower press
- Bleach tower processed water treatment
FAQ
Q1: Can your filters handle the high temperatures of power plant amine loops?
A1: Yes. Our HFK series utilizes high-temperature glass fiber and reinforced materials, rated for continuous operation at 121°C.
Q2: Is any modification to my current filter housing required?
A2: None. The 6-inch diameter and specialized interface of our HF series ensure a direct, “plug-and-play” replacement for standard Pall Vector housings
