1. Introduction

Pall large flow filters have a big diameter of 6 inches/152mm,but no center support frame.Only one end of the filter is open and its flow manner ofitering fluid is from inside to outside.The big diameter ofiter elements increaseseffective filtering areas, and greatly reduces the amounts ofiter element and the size of its body case.Due to its large flow and long life,Pall large flow filter can lower investment and human cost in many applications.

Send Request

2. Application Fields

  • RO cartridge filtration and seawater desalination pretreatment
  • Filtration of condensed water in power plants
  • Filtration of bulk drug,solvent,and water in bio- pharmacy industry
  • Filtration of bottled water,liquid glucose,edible oil,juice,soft drink and milk
  • Painting,petrochemical industry
  • Micro-electronics,film,fiber,resin

3. Product Properties

  • The structure of gradual aperture

  • Maximum flow of one filter can be up to 110m³/h during the water filtering.
  • Filtration system size can be reduced by 50%in maximum.
  • Filters with the length of 20″,40″and 60″can be offered.
  • Inside-out directions guarantee allimpurities will be left inside the filters.
Send Request

4.Technical Specifications

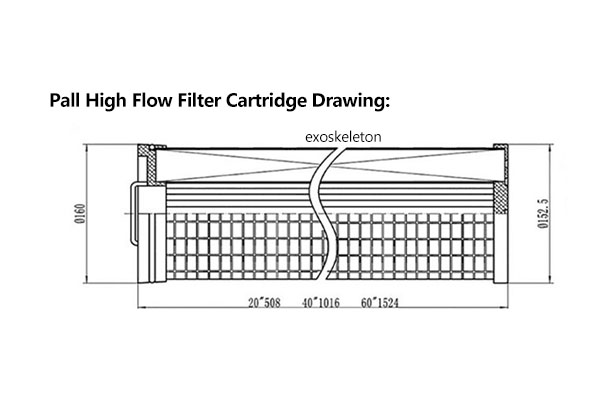

Filter Size
Outer Diameter 6" (152 mm)
Length 20" (528 mm) / 40" (1022 mm) / 60" (1538 mm)
Part Material
Filter Material Folding Glass Fiber
Folding Deep Polypropylene (PP)
MBPP
Support / Diversion Layer Polypropylene (PP)
End Cap Reinforced Polypropylene with Glass Fiber
Seal Material EPR (Ethylene-Propylene Rubber)
Nitrile Rubber
Performance of Filter Elements
Filtering Accuracy 1 μm / 4.5 μm / 6 μm / 10 μm / 20 μm / 40 μm / 70 μm / 100 μm
Highest Operating Temperature Folding Glass Fiber: 121 ℃
Folding Deep Polypropylene (PP): 82 ℃
MBPP: 65 ℃
Maximum Pressure Drop Folding Glass Fiber: 3.4 bar @ 121 ℃
Folding Deep Polypropylene (PP): 3.4 bar @ 82 ℃
MBPP: 1.03 bar @ 65 ℃
Recommended Pressure Drop for Replacement 2.4 bar @ 20 ℃
Recommended Maximum Filtering Water Flow 20" Filter: 660 L/min
40" Filter: 1300 L/min
60" Filter: 1900 L/min
