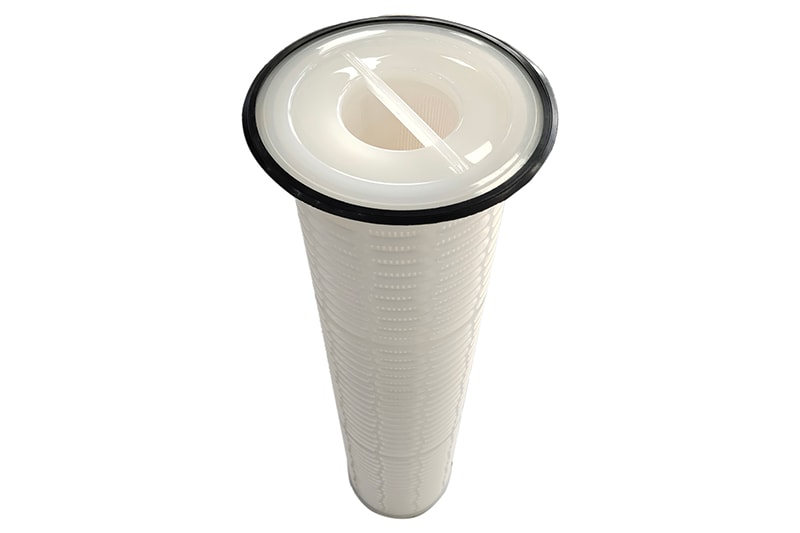

Pall Marksman Series Replacement - LBG High-Flow Filter Elements
The Performance of a Cartridge with the Ease of a Bag. Upgrade your standard Size 1 and Size 2 bag housings to high-efficiency pleated filtration without any hardware modifications.
The LBG series provides a direct 1:1 engineering match for Pall Marksman, allowing users to upgrade bag housings to high-efficiency pleated filtration with zero hardware investment.
Technical Compatibility: Ecofiltrone LBG vs. Pall Marksman
| Benchmarking Metric | Pall Marksman® Series Replacement | Ecofiltrone LBG Series Replacement | Conclusion / Match |
|---|---|---|---|
| Design Logic | Cartridge in a Bag Housing | Cartridge Performance, Bag Installation | Perfect Strategy Alignment |
| Outside Diameter | 6" (152.4 mm) | 6" (152.4 mm) | Drop-in Fit |
| Sealing Mechanism | Self-adjusting Flange | Self-adjusting Sealing Flange | Leak-proof Integration |
| Housing Compatibility | Standard Size 1 & 2 Bag Housings | Standard Size 1 & 2 Bag Housings | Zero Hardware Change |
| Flow Direction | Inside-to-Outside | Inside-to-Outside | Traps Contaminants Inside |
| Filtration Area | High Surface Area Pleated | Large Area Pleated Design | 10x Life of Standard Bags |
| Order Information | 0100 | 01 | E |
| Series | Filter Precision | Length | Seal Material |
|---|---|---|---|
| LBG |
|
|
|
Performance Characteristics
| Performance characteristics | Specifications |
|---|---|
| Filter precision | 1.0, 2.0, 5.0, 10, 20, 40, 70, 90μm |
| Maximum working pressure | 0.35 Mpa/21°C (from inside to outside) |
| Pressure differential replace | 0.1 Mpa/21°C (from inside to outside) |
| Sterilization by flowing hot water | 77~82°C/30min |
| Maximum working temperature | 82°C |
The “Cartridge-to-Bag” Retrofit Advantage
- Simplified Upgrade: Directly replace standard filter bags with our 6-inch diameter pleated elements. No bypass, no housing replacements, and no downtime for hardware retrofitting.
- Self-Adjusting Seal: Our proprietary flange design automatically adjusts to fit most standard bag filter baskets, ensuring a positive seal and preventing fluid bypass.
Superior Filtration Economics
- 10x Service Life: The pleated high-density structure provides significantly more surface area than a standard bag, leading to fewer change-outs and lower labor costs.
- Inside-to-Outside Flow: Designed to trap all captured particles inside the element, ensuring that your housing remains clean during filter removal.
- High Flow Capacity: Optimized for high throughput, allowing for smaller systems or reduced pressure drop in existing systems.
Applications
- General Applications: Prefiltration for reverse osmosis systems, purification of various process water.
- Industrial Use: Filtration for various process fluids, process water, condensate water, cooling water, wastewater treatment, and more.
- Filtration for power plant condensate water, feedwater, and cooling water.
- Filtration of various solvents, and other chemical agents in the petrochemical industry.
- Filtration of various solvents, chilled water, saltwater, and other chemical agents in the petrochemical industry.
- RO protection, pretreatment for seawater desalination, and filtration of various process water.
Tags:
RO water pre-filtrationIndustrial water purificationSeawater desalinationPower generation water treatmentChemicals filtrationPetrochemical filtrationPharmaceutical & biopharmaceutical filtration
FAQ
Q1: Do I really need no tools to install the LBG series in my bag housing?
A1: Correct. The LBG series is designed to fit directly into standard Size 1 or Size 2 baskets. The self-adjusting flange seats itself, making installation as fast as a standard bag change.
Q2: Can your LBG series handle high-temperature industrial fluids?
A2: Yes. We offer the LBG-GF series made with glass fiber and reinforced materials, capable of operating at temperatures up to 121°C
