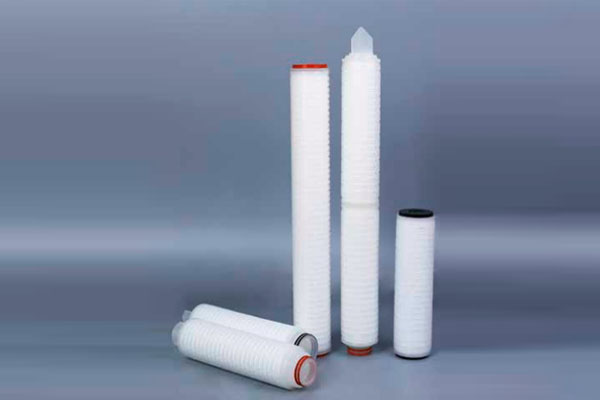

LZ-PPL Series Pleated PP Filter Cartridge - Economical & High-Efficiency Pre-filtration
Featuring imported PP membranes for high flow rates and superior dirt-holding capacity. Available in standard and integral frame designs to minimize leakage risks.
Trust Badges : FDA | CE | ISO 9001:2015 | NSF | SGS
Product Overview
- General Description: LZ-PPL series utilizes imported polypropylene membranes, making it the most economical choice for pre-filtration in various industrial fields.
Structural Options: Available in PLZ-I (standard frame) and PLZ-II (integral frame).
- Core Advantage: The PLZ-II integral frame offers a large filtration area, high mechanical strength, and enhanced dimensional stability to minimize leakage risks.
- Chemical Compatibility: Features broad chemical compatibility, capable of filtering various acids, alkalis, and solvents.
Technical Specifications
| Parameter | Specification |
|---|---|
| Outside Diameter | 68.5 mm |
| Available Lengths | 10", 20", 30", 40" |
| Filter Media | Imported Polypropylene (PP) |
| Filtration Area | 0.4 – 0.7 m² per 10-inch element |
| Max. Operating Temperature | 80°C |
| Sterilization | Supports Moist-heat (121°C/30min) and Flowing hot water (85°C/30min) sterilization. |
Performance Data Verification
Technical Note: Performance curves for 0.2um-0.3um are validated under clean water conditions (10 inch length) to ensure energy-efficient operation .
Ordering Information
| LZ-PPL | 40 | 0022 | C2 | S |
| Series | Length (in.) | Micron (μm) | End Cap Type | Seals |
|---|---|---|---|---|
| LZ-PPL |
|
|
|
|
Typical Applications
Water Treatment: Security filter for Reverse Osmosis (RO) systems.
Food & Beverage: Clarification and filtration for beer, wine, spirits, and mineral water.
Pharmaceutical: Pre-filtration for infusion, biological products, and fermentation air.
Chemical/Electronics: Optical mirror resin monomer filtration and chemical solvent purification.
Legal Disclaimer: All OEM brand names are for cross-reference only. Ecofiltrone is an independent manufacturer of high-quality equivalents.
