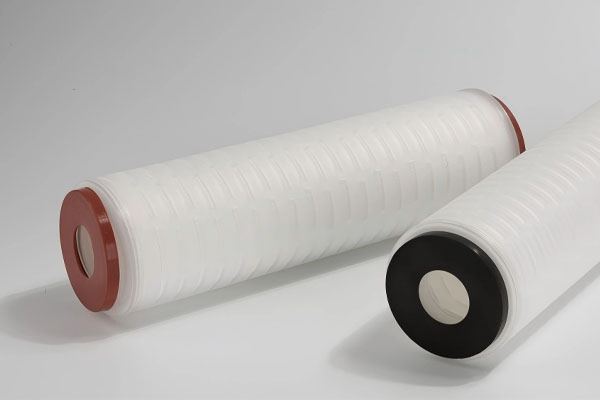

HPPV Series Ultra-High Dirt Holding Capacity PP Filter Cartridge
Engineered with multi-layered nanofibers and a graded pore structure to tackle high-solids and high-viscosity fluids with maximum service life.
Trust Badges : FDA | CE | ISO 9001:2015 | NSF | SGS
Product Overview
General Description: The HPPV series utilizes multi-layered nanofiber materials with a scientifically designed gradient structure to achieve superior dirt-holding capabilities.
Core Advantage: * Multi-stage Interception: Features a graded pore size from coarse to fine, which effectively resolves surface clogging and significantly extends the filter’s service life.
High Viscosity Specialist: Specifically optimized for fluids with high suspended particles, colloidal substances, and high viscosity.
Pure Construction: All components are thermally welded without any adhesives or surfactants, ensuring high purity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Outside Diameter | 68.5 mm (Standard) |
| Available Lengths | 5", 10", 20", 30", 40", 70" |
| Filter Media | Multi-layer Nanofiber Polypropylene (PP) |
| Support/Cage/Core | Polypropylene (PP) |
| Max. Operating Temp. | 80°C |
| Max. Forward ΔP | 4 bar @ 21°C / 2.4 bar @ 80°C |
Performance Data Verification
- Section Title: Lab-Verified Filtration Efficiency
- Description: The HPPV series provides exceptional removal efficiency across a wide range of particle sizes. To protect our proprietary gradient structure design and R² regression data, detailed performance rating curves are available upon request.
- Filtration Efficiency Data:
0.5μm: >99.9% Efficiency
1.0μm: >99.9% Efficiency
1.5μm: >99.9% Efficiency
Ordering Information
| HPPV | 0500 | 10 | C1 | E |
| Series | Micron Rating | Length | Connection | Seal Material |
|---|---|---|---|---|
| HPPV |
|
|
|
|
Typical Applications
- High-Viscosity Liquids: Filtration of resins, inks, and heavy oils.
- Colloidal Substances: Removal of gels and deformable particles in chemical processing.
- Food & Beverage: Clarification of syrups and concentrated fruit juices.
- Fine Chemicals: High-solids loading process fluids.
