High-Performance Filtration Solutions for Power Generation
Engineering Integrity for Modern Power Plants
Optimizing Condensate Polishing & Stator Cooling Systems
In modern power generation, maintaining water chemistry is critical to preventing boiler scaling and turbine erosion. Ecofiltrone provides advanced filtration solutions designed for 600MW and 1000MW supercritical units. Our technology focuses on high-temperature stability and superior iron removal to ensure the longevity of your thermal cycle.
- Industry Standards: Fully compliant with CE, ISO 9001:2015, and SGS quality benchmarks.
- Thermal Capability: Specialized media options capable of long-term operation at 120°C (248°F).
- System Efficiency: High-flow designs that reduce system footprint by 50% compared to traditional configurations.
Process Insights: Deep Dive into Power Plant Pain Points
Thermal power cycles demand extreme reliability under high-pressure and high-temperature conditions.
Critical Process Challenges
- Iron Oxide (Crudd) Removal: Suspended iron particles in condensate can cause significant damage to downstream components if not intercepted with absolute precision.
- High-Temperature Condensate: Standard filters often fail or deform at temperatures exceeding 80°C, leading to bypass leakage.
Engineering Pain Points Addressed
- Resin Trap Failure: Our HFZ and HFX series act as essential pre-filters or resin traps to prevent ion exchange resin fines from entering the boiler.
- Startup Iron Spikes: During unit startup, iron concentrations spike; our high-capacity HFL series handles these surges without frequent mid-startup change-outs.
- High Replacement Costs: Low-surface-area filters lead to rapid pressure drop, increasing both consumable costs and hazardous waste volume.
Ecofiltrone’s Engineered Solutions (USP)
We bridge the gap between heavy-duty durability and fine filtration precision.
I. Exclusive One-piece Outer Cage
Our HFL series features a unique one-piece outer cage, the only one of its kind in the domestic market, providing maximum structural support against the high-pressure surges typical of boiler feed systems.
II. Thermal Stability & High Temperature PET/GF
For condensate systems, we utilize specialized Polyester (PET) or Glass Fiber (GF) media that maintains integrity at 121°C, preventing media migration into the steam cycle.
III. Washable & Reusable Designs (HFZ Series)

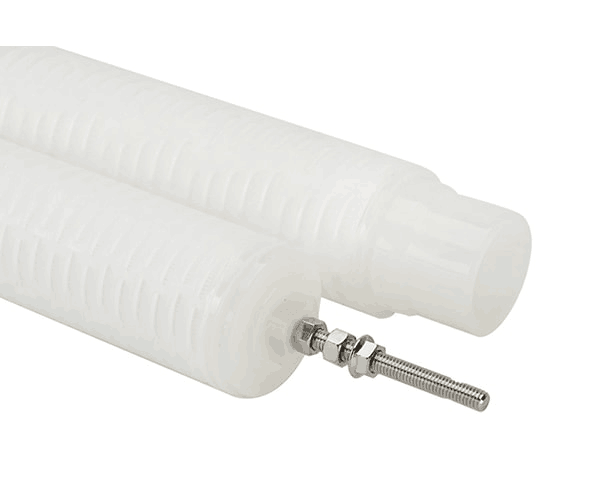

The HFZ series is a high-precision, all-welded polypropylene filter that is backwashable, significantly reducing the total cost of ownership for condensate polishing pre-filtration.
Recommended Product Matrix for Desalination
| Series | Technical Highlight | Primary Application |
|---|---|---|
| HFZ Series | Backwashable, Threaded Connection | Condensate polishing pre-filtration for 600MW/1000MW units. |

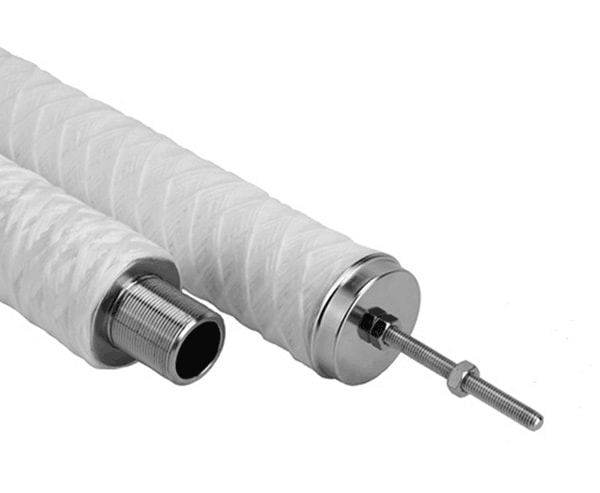

| HFX Series | Up to 70" (1778mm) length, high strength | Resin traps, iron removal, and stator cooling water. |
| HFLH Series | High-temp PET media, 120°C limit | High-temperature condensate and process water treatment. |
| HFL Series | 7 m² area, 50% system reduction | General RO pre-filtration and raw water treatment. |
Quality Assurance & Quantifiable ROI
Quality Excellence
- Hot-Melt Welding: All-welded construction ensures no bonding agents or surfactants can leach into the ultra-pure water loop.
- Absolute Micron Ratings: Precision from 0.1μm to 100μm ensures total protection for your turbines and RO membranes.
Strategic Investment Return (ROI)
- Reduced OPEX: Lower initial differential pressure and high dirt-holding capacity extend filter life, reducing annual consumable spending.
- Plant Safety: The Inside-to-Outside flow direction in HFL/HFM series keeps all iron oxides trapped inside, making maintenance safer and cleaner for plant staff.
