ELX Series String Wound Filter Cartridge - High-Strength Depth Filtration
Engineered with a specialized honeycomb structure for superior solids removal. Available in multiple fiber materials to withstand temperatures up to 200°C in demanding industrial environments.
Trust Badges : FDA | CE | ISO 9001:2015 | NSF | SGS
Product Overview

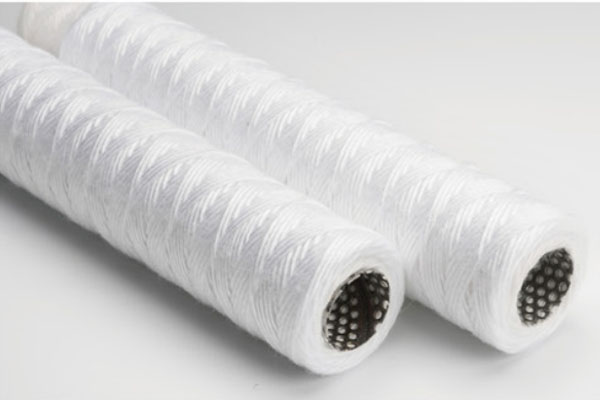

General Description: The ELX series is a depth filtration solution made by tightly wrapping high-performance textile fibers onto a porous skeleton.
Honeycomb Structure: The specific winding process creates an “outer-loose, inner-dense” honeycomb geometry, effectively intercepting suspended solids, rust, and particulates.
Structural Integrity: Features high mechanical strength, ensuring the fibers remain stable and do not shed even under high pressure and harsh process conditions.
Versatile Material Selection: Offers a wide range of fiber and core combinations to meet diverse chemical and thermal requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media Options | Polypropylene (PP), Cotton (CO), Glass Fiber (GF), or Organic Fiber (FO) |
| Support Core Options | Polypropylene (PP) or Stainless Steel (304/316L) |
| Micron Ratings | 1μm, 5μm, 10μm, 25μm ... up to 150μm |
| Available Lengths | 5", 10", 20", 30", 40", 50", 60", 70" |
| Max. Operating Temp. | PP: 80°C |
| Max. Forward ΔP | 4.0 bar (Recommended replacement at 2.0 bar) |
Performance Data Verification
Lab-Verified Depth Filtration Efficiency
Our ELX series is tested for consistent particle interception across its entire depth. To protect our proprietary winding tension algorithms and R² regression data, detailed performance rating curves are available upon request.
Ordering Information
| ELX | PX | 0100 | 10 | C1 | E |
| Series | Filter Media | Micron Rating | Length | Connection | Seal Material |
|---|---|---|---|---|---|
| ELX |
|
|
|
|
|
FAQ
Q1: What are the benefits of the ELX “Honeycomb” structure?
A: This structure allows for true depth filtration. The larger outer pores trap big particles, while the tighter inner pores capture fine contaminants, resulting in a higher dirt-holding capacity compared to surface filters.
Q2: Which material should I choose for high-temperature oil filtration?
A: For temperatures up to 200°C, we recommend the Glass Fiber (GF) media with a Stainless Steel core to ensure structural stability.
Q3: Is the ELX series suitable for food and beverage applications?
A: Yes. Our Polypropylene (PP) and Cotton (CO) versions are produced following strict quality standards to ensure high purity and low extractables.
Q4: How do I know when to change the filter?
A4: While the ELX series can withstand a 4.0 bar differential pressure, we recommend a replacement at 2.0 bar to maintain optimal flow efficiency and prevent particle breakthrough.
