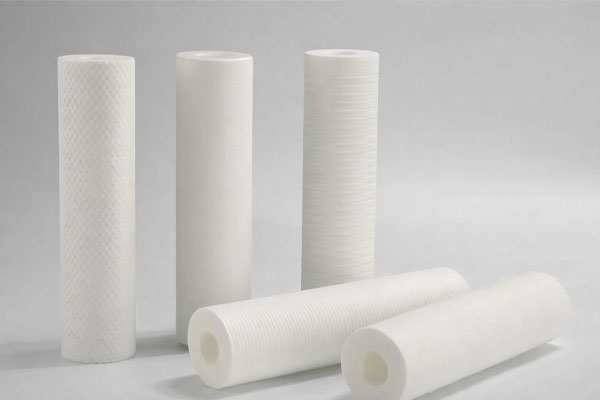

ELM Series Melt-blown Filter Cartridge - High Rigidity & Chemical Versatility
Featuring advanced melt-blown technology for 2x the pressure resistance of standard filters. Available in Polypropylene and innovative Nylon fibers for specialized solvent filtration.
Trust Badges : FDA | CE | ISO 9001:2015 | NSF | SGS
Product Overview
- General Description: The ELM series offers two distinct material solutions: high-rigidity Polypropylene (PP) and innovative Nylon (NY) fibers, produced via the latest melt-blown processes.
- ELM-PP (High Rigidity): * Features extremely hard mechanical properties with over 2x the compression resistance of ordinary melt-blown filters.
Ideal for high-viscosity fluids and high-solids loading materials such as metallic paints. - ELM-NY (Nylon Innovation): * Utilizes unique nylon fibers providing excellent chemical compatibility with benzene, toluene, and xylene.
Suitable for specialized applications including emulsion filtration. - Core Advantage: The deep-bed filtration logic ensures high dirt-holding capacity and low resistance for particulate interception.
Technical Specifications
| Parameter | Specification |
|---|---|
| Outside Diameter | 63 mm (Default) / Customizable |
| Available Lengths | 5", 10", 20", 30", 40" |
| Filter Media | Polypropylene (PP) or Nylon (NY) |
| Support/Cage | Reinforced Polypropylene |
| Max. Operating Temp. | 80°C |
| Max. Forward ΔP | 3 bar @ 21°C |
Performance Data Verification
Lab-Verified Structural Integrity
The ELM series is engineered to maintain its pore structure even under significant pressure surges. To protect our proprietary fiber-bonding techniques and regression data, detailed performance rating curves are available upon request.
Ordering Information
| ELM | PP | 0500 | 10 | C1 | S |
| Series | Filter Media | Micron Rating | Length | Connection | Seal Material |
|---|---|---|---|---|---|
| ELM |
|
|
|
|
|
Typical Applications
High-Viscosity Coatings: Ideal for metallic paints and high-solids industrial coatings.
Chemical Solvents: Filtration of aggressive solvents like Benzene, Toluene, and Xylene (Nylon version).
Industrial Fluids: Effective for emulsion filtration and oily wastewater processing.
General Pre-filtration: A robust alternative for standard water treatment requiring high mechanical strength.
