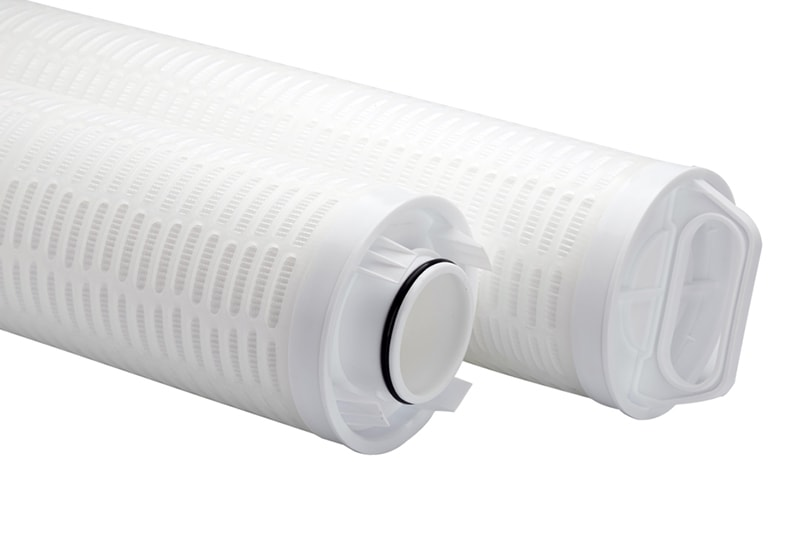

Replacement for 3M™ 740B High Flow Filter Cartridges | 1:1 HFM Series Technical Cross-Reference
High-Performance "Bag-to-Cartridge" Upgrade for #2 Bag Housings
Looking for a reliable alternative to 3M™ 740B filters? Our HFM series is a 100% technical match, designed to fit perfectly into standard Size #2 Bag Filter Housings. This solution allows you to upgrade from traditional filter bags to high-efficiency pleated technology without any hardware modifications.
By utilizing an Inside-to-Outside flow direction, the Ecofiltrone HFM series ensures all captured contaminants are trapped within the cartridge, preventing downstream pollution during filter change-outs.
Technical Benchmarking: Ecofiltrone HFM vs. 3M™ 740B
| Technical Metric | 3M™ 740B Series | Ecofiltrone HFM Series | Compatibility Conclusion |
|---|---|---|---|
| Outer Diameter (OD) | 6.5" (165 mm) | 6.5" (165 mm) | 1:1 Precise Fit |
| Flow Direction | Inside to Outside | Inside to Outside | Prevents Bypass |
| Filter Media | Pleated PP | Pleated Polypropylene | Chemical Consistency |
| Housing Compatibility | #2 Bag Filter Vessel | Standard #2 Bag Basket | Direct Drop-in |
| Max. Operating Temp | 82°C (180°F) | 82°C (PP) | Industrial Standard |
| Max. Differential ΔP | 3.44 bar @ 82°C | 3.44 bar @ 82°C | High Structural Strength |
3M™ 740B Part Number Cross-Reference Guide
| 3M™ Original Part Number | Ecofiltrone Equivalent PN | Micron Rating | Housing Type |
|---|---|---|---|
| 740BPP001 | HFM-PP-1-40-E | 1 μm | Size #2 Bag Housing |
| 740BPP005 | HFM-PP-5-40-E | 5 μm | Size #2 Bag Housing |
| 740BPP010 | HFM-PP-10-40-E | 10 μm | Size #2 Bag Housing |
| 740BPP025 | HFM-PP-25-40-E | 25 μm | Size #2 Bag Housing |
| 740BPP050 | HFM-PP-50-40-E | 50 μm | Size #2 Bag Housing |
| 740BPP100 | HFM-PP-100-40-E | 100 μm | Size #2 Bag Housing |
Industrial Applications & Solving Your Filtration Challenges
1. High-Precision Retrofitting for Bag Systems
- The Challenge: Standard liquid bags often suffer from low efficiency and “fiber migration,” leading to inconsistent water quality in critical processes.
- Our Solution: The HFM series provides a rigid, pleated structure that offers significantly higher surface area than a standard filter bag.
- Performance Advantage: Achieves up to 10 times the service life of traditional bags, minimizing downtime and labor costs while maintaining high-efficiency retention.
2. Petrochemical and Hydrocarbon Processing
- The Challenge: Fluids with high solids content can cause traditional bags to burst or bypass under pressure surges.
- Our Solution: Built with high-strength polypropylene components, our HFM series maintains structural integrity up to 3.44 bar.
- Performance Advantage: The specialized sealing flange ensures a bypass-free fit in standard baskets, protecting downstream equipment from abrasive particulates.
3. Protection of RO Membranes in Water Reuse
- The Challenge: Fine colloids and silt in wastewater can quickly foul expensive RO membranes if pre-filtration is inadequate.
- Our Solution: Gradient density polypropylene media provides multi-layer depth filtration, capturing a wide range of particle sizes.
- Performance Advantage: Stabilizes Silt Density Index (SDI) values, extending membrane life and reducing the overall energy consumption of the RO system.
Why Choose Ecofiltrone?

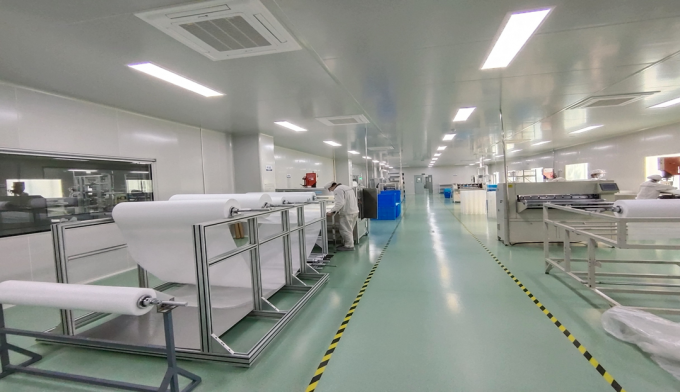

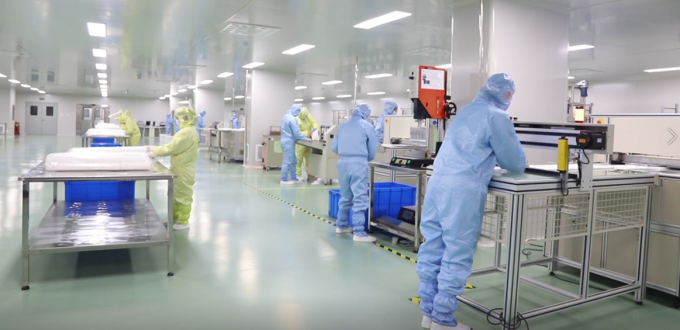

- 100,000-Class Cleanroom: All HFM cartridges are produced in a medical-grade environment to ensure zero initial contamination.
- Optimized Sealing Design: Our HFM series features a unique ergonomic handle and sealing flange that guarantees a perfect seat in the bag basket.
- Certified Quality: Ecofiltrone is an ISO 9001:2015 certified manufacturer. Our materials are fully compliant with FDA, NSF, CE, and SGS standards.
- Transparent Performance: We offer full flow-rate vs. pressure-drop data (Rating Curves) to ensure your system design is based on hard facts.
FAQ
Q1: Will the HFM series fit my competitive bag housing (e.g., Eaton, Pentair)?
A1: Yes. The HFM is designed to fit standard #2 bag baskets, which are the industry standard across multiple brands.
Q2: How does the “Inside-to-Outside” flow direction benefit me?
A2: It keeps all filtered solids contained within the core of the filter, so they don’t fall back into the clean side of the housing during removal.
Q3: Can you provide customized micron ratings for the HFM series?
A3: Yes, while 1-100 $\mu m$ is standard, we can customize the media density for specific high-viscosity or sensitive fluids.
