Replacement for 3M™ High Flow Filter Cartridges | 1:1 Technical Cross-Reference
High-Performance Alternative to 3M™ 700 Series Systems

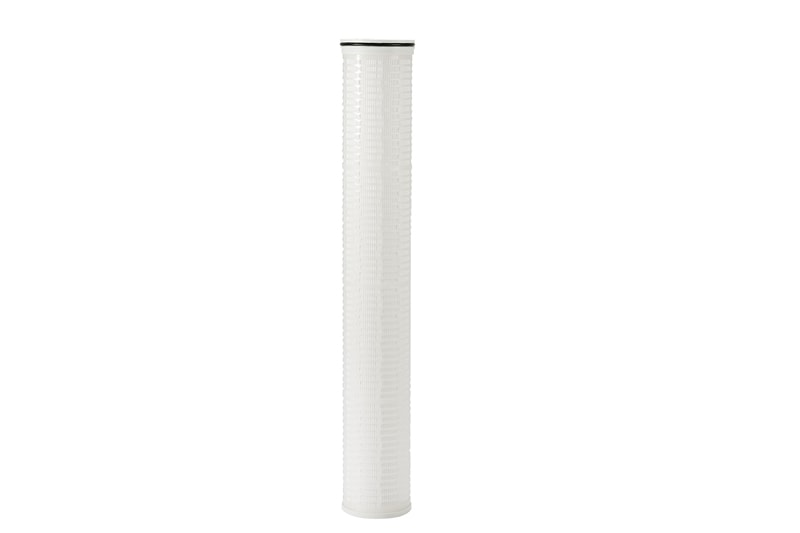

Looking for a cost-effective yet high-performance alternative to 3M™ High Flow (HF series)? Our HFL series is a direct drop-in replacement, engineered to match the original Radial Pleat geometry and fit perfectly into 3M™ 700-series housings without any modifications.
Ecofiltrone HFL series matches the 152.4 mm (6-inch) outer diameter and the critical Inside-to-Outside flow direction. This design ensures all contaminants are trapped inside the cartridge, preventing downstream pollution during filter changes.
Technical Benchmarking: Ecofiltrone HFL vs. 3M™ High Flow
| Technical Metric | 3M™ High Flow Series | Ecofiltrone HFL Series | Compatibility Conclusion |
|---|---|---|---|
| Outer Diameter (OD) | 6" (152.4 mm) | 152.4 mm | 1:1 Exact Fit |
| Flow Direction | Inside to Outside | Inside to Outside | Zero Bypass Risk |
| Filtration Area | ~7 m² per 40" | 7 m² per 40" | Identical Flux & Life |
| Max. Operating Temp | 82°C (PP) | 82°C (PP) / 121°C (GF) | Industrial Grade |
| Max. Differential ΔP | 3.44 bar @ 82°C | 3.44 bar @ 82°C | High Structural Strength |
| Media Design | Radial Pleated | Standard / Crescent Pleated | Optimized Dirt Holding |
3M™ Part Number Cross-Reference Guide
Our HFL ordering system is designed to provide a 1:1 match for your existing 3M™ part numbers:
| 3M™ Official Part Number | Ecofiltrone Equivalent PN | Micron Rating | Seal Material |
|---|---|---|---|
| HF40PP001A01 | HFL-PP-0010-40-G-E | 0.1 μm | EPDM |
| HF40PP005A01 | HFL-PP-0500-40-G-E | 5 μm | EPDM |
| HF40PP010A01 | HFL-PP-1000-40-G-E | 10 μm | EPDM |
| HF40PP025B01 | HFL-PP-2500-40-G-N | 25 μm | NBR |
| HF40PP070C01 | HFL-PP-7000-40-G-V | 70 μm | Viton |
| HF60PP005A01 | HFL-PP-0500-60-G-E | 5 μm | EPDM |
Order Information
| Series | Material | Micron (μm) | Length (in.) | Support | Seals |
|---|---|---|---|---|---|
| HFL |
|
|
|
|
|
Industrial Applications & Solving Your Filtration Challenges
1. Seawater Desalination (SWRO) Pre-filtration
- The Challenge: High replacement frequency and cost of downstream RO membranes due to poor sediment removal.
- Our Solution: The HFL series matches the 3M™ HF series’ efficiency, providing a 1:1 drop-in replacement that protects your membranes.
- Performance Advantage: Engineered for low initial pressure drop and high dirt-holding capacity, significantly extending the service life of your entire filtration system.
2. Food & Beverage Process Water
- The Challenge: Strict compliance requirements for contaminants and material safety in process water.
- Our Solution: Every Ecofiltrone HFL element is produced in a 100,000-class cleanroom and is fully compliant with FDA, NSF, and SGS standards.
- Performance Advantage: 100% thermally bonded construction (no adhesives) ensures zero media migration and broad chemical compatibility for food-grade applications.
3. Power Plant Condensate Treatment
- The Challenge: Maintaining filtration integrity under high-temperature conditions up to 120°C.
- Our Solution: For extreme environments, our HFLH (High-Temperature) series utilizes specialized PET or Glass Fiber materials designed to perform where standard PP filters fail.
- Performance Advantage: Capable of handling flow rates up to 70 m³/h (40″) while maintaining structural stability at elevated temperatures.
Why Choose Ecofiltrone?

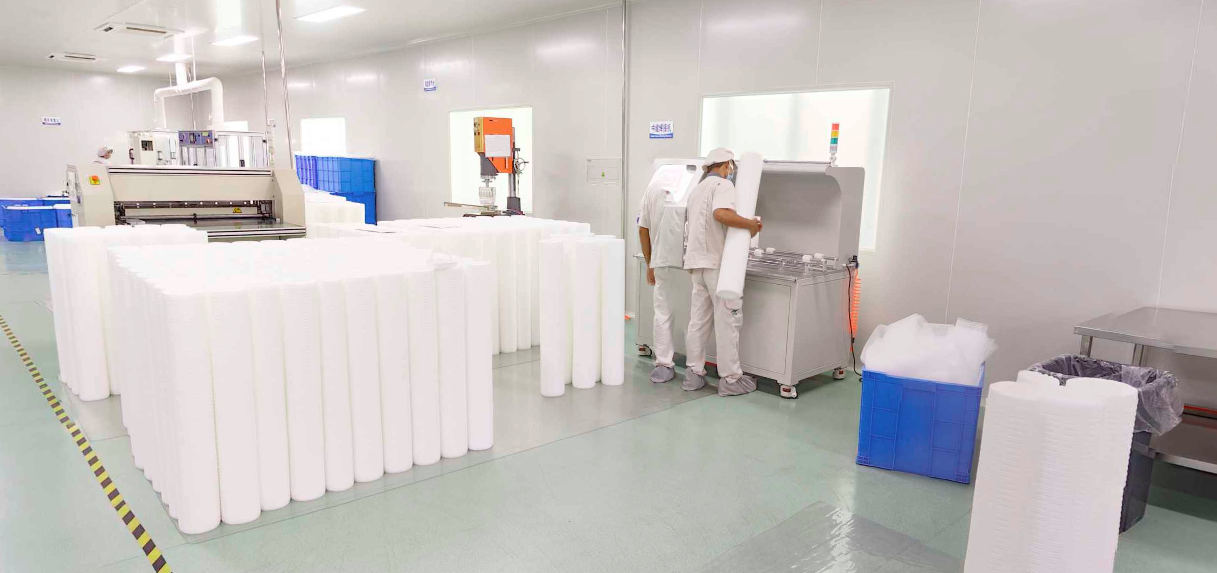

- Advanced Manufacturing: Our workshop features high-standard cleanroom environments for medical and industrial-grade production.
- Unique Technology: We are the only domestic manufacturer providing a one-piece outer cage for high-flow cartridges, increasing structural integrity by 30%.
- Certified Quality: Ecofiltrone is an ISO 9001:2015 certified company. Our products carry CE, FDA, NSF, and SGS certifications to meet global regulatory requirements .
- Technical Support: We provide full technical cross-reference tables and flow-pressure drop curves (Rating Curves) to help your engineering team with precise sizing.
FAQ
Q1: Is Ecofiltrone HFL compatible with 3M™ 700 series housings?
A1: Yes, it is a 1:1 drop-in replacement with the same 6-inch diameter and sealing mechanism.
Q2: What is the recommended change-out pressure?
A2: We suggest replacing the filter element when the differential pressure reaches 2.5 Bar.
Q3：Can I get a customized length or micron rating?
A3 : Absolutely. While 20″, 40″, and 60″ are standard, we can customize specifications to meet your specific process requirements.
