HF- R Series High Flow Cartridges
Applications
- Salt Water
- Ink & Chemical
- Municipal Water
- Food & BeverageRO Pre-filtration
- Photographic
- Boiler Condensate
- Processing Water
- Cosmetic & Medical
Benefits
- Allows high flow rate of media to pass through the filter media, which has the advantages of high efficiency, low pressure loss and long life.
- The external inlet and internal outlet structure of the high-flow cartridge makes it easy to replace the cartridge, while keeping the contaminants trapped outside the cartridge.
- The internal pp support skeleton of the cartridge can withstand the differential pressure of 0.245MPa.
- The β value of the filter element is more than 1000.
- Multiple filter cartridges can be installed in the filter housing, which can be used in a wide range of flow rates, whether in start-up or continuous operation.
| Filter Material | Polypropylene(PP) |
| Length | 40"(1016mm), 60"(1524mm) |
| Outside Diameter | 6.75”(171mm) |
| Inside Diameter | 71.5mm |
| Filtration Rating | 1μm, 5μm, 10μm, 15μm, 20μm, 50μm, 70μm, 100μm |
| Conductor layer/support layer | Polypropylene (PP) |
| End Cap Material | Nylon |
| Seal Material | Buna-N |
| Maximum Operating Temperature | 82°C |
| Working pressure difference | 0.38MPa / 21°C / 0.15MPa 82°C |
| Recommended Change out Differential Pressure | 2.4bar / 20°C |

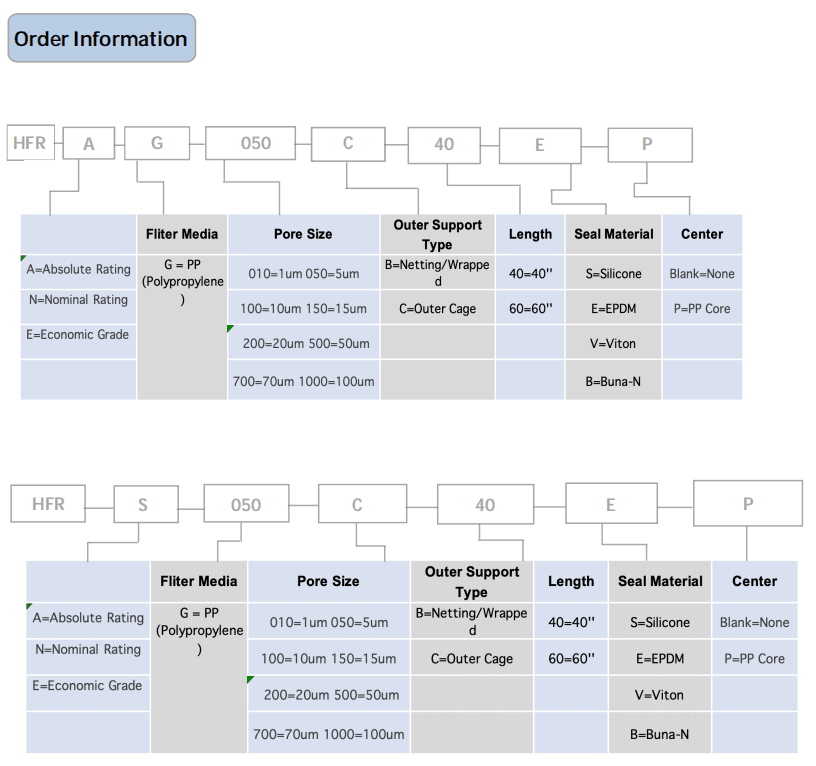

Ordering Information
