HF-L Series High Flow Cartridges
Applications
- Reverse Osmosis Pre-Filtration
- Power plant cold condensate filtration
- Chemical
- Petrochemicals
- Food & Beverage
- Oil & Gas
- Industrial water treatment

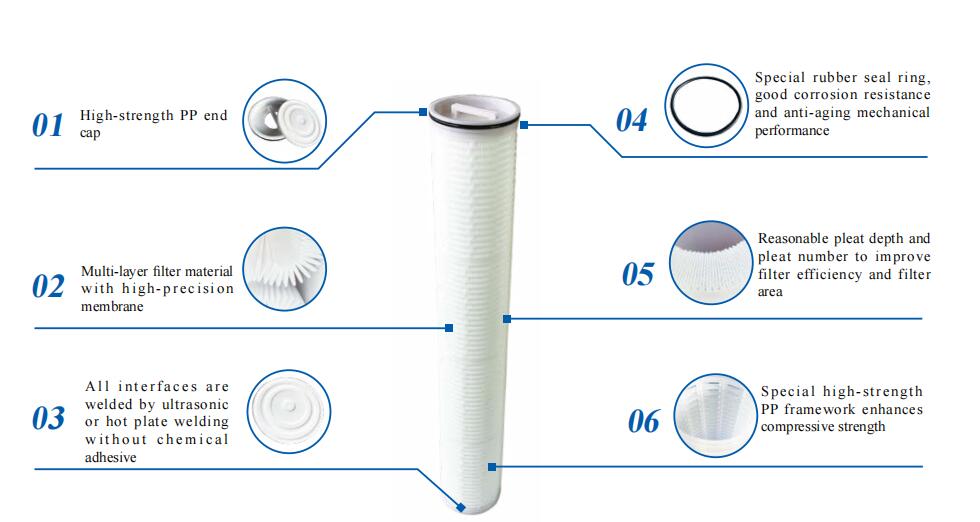

Features and advantages
The combination of surface filtration and deep filtration can significantly reduce the number of cartridges and significantly reduce the size of the supporting filter shell compared with ordinary cartridges,to help you reduce the cost.
The filter layer is made of high-efficiency and low-resistance material, which can achieve more than 99% of ultra-high filtration efficiency and long the service life of the filter cartridge to help you reduce exchange-out times.
The design of convenient handle significantly reduces the time of cartridge replacement and makes cartridge replacement simple and portable.
The overall polypropylene design and hot melt welding treatment effectively prevent the end cap from falling off and secondary pollution.
- The design of sealed interface reduces the risk of bypass flow and ensures the sealing and reliability of filtration
- The folded design increases the filtering area and makes the pressure drop significantly lower than that of ordinary cartridge.
The design of large diameter increases the dirt holding capacity, prolongs the service life and reduces the production cost

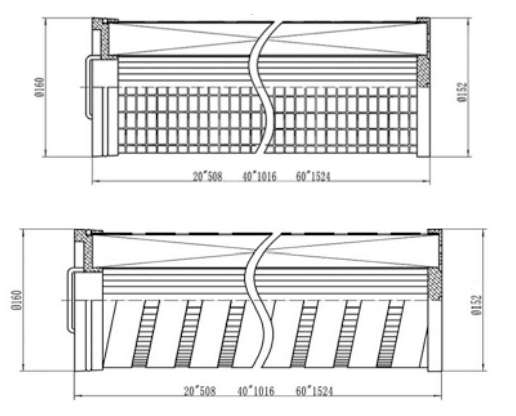

Structural Style
External cage
Internal and External cage
Spiral

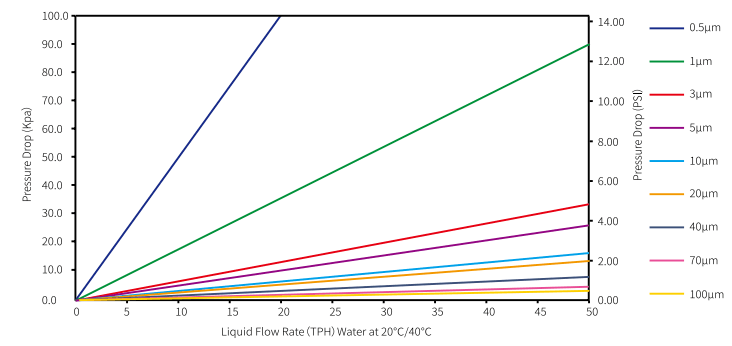

Flow curve

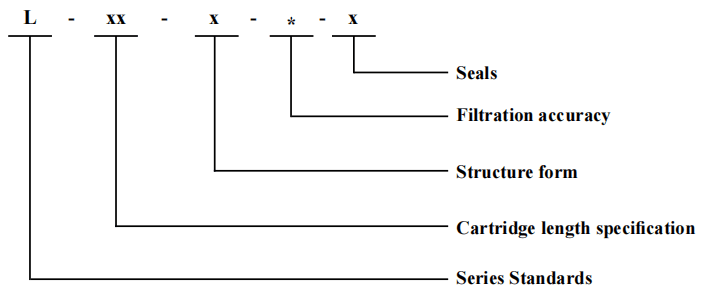

Order information of HF-L series high flow water cartridge
| Series Standards | Cartridge length (inch) |
Structure form | Filtration accuracy | Seals |
|---|---|---|---|---|
| L-Series | 20--20” | N--Inner and outer skeleton | 005--0.5μm | S--Silicone Rubber |
| 40--40” | W--Outer skeleton | 010--1μm | E--EPDM rubber | |
| 60--60” | R--External winding tape | 030--3μm | V--Viton | |
| 050--5μm | B--Nitrile rubber | |||
| High flow filter | 100--10μm | |||
| 200--20μm | ||||
| 400--40μm | ||||
| 700--70μm | ||||
| 1000--100μm |
| Filter Media | Polypropylene(PP), Glass Fiber |
| Length | 20"(508mm),40"(1016mm),60"(1524mm) |
| Outside Diameter | 6 inch (152mm) |
| Filtration direction | From inside to outside |
| Filtration Rating | 1μm,2μm,3μm,5μm,10μm,20μm,40μm,70μm,100μm |
| Support Core | Polypropylene (PP) |
| End Cap Material | Glass fiber reinforced Polypropylene (PP) |
| Outside | Rigid Hard Cage Belt, Stainless Steel (special) |
| Seal Material | EPDM, Buna-N, Viton |
| Maximum Operating Temperature | Pleated glass fiber: 121°C Pleated PP: 82°C Melt Blown PP: 65°C |
| Maximum Differential Pressure | Pleated glass fiber: 3.4 Bar at 121°C Pleated PP: 3.4 Bar at 82°C Melt Blown: 1.03 Bar at 65°C |
| Recommended Change out Differential Pressure | 2.5 Bar at 20°C |

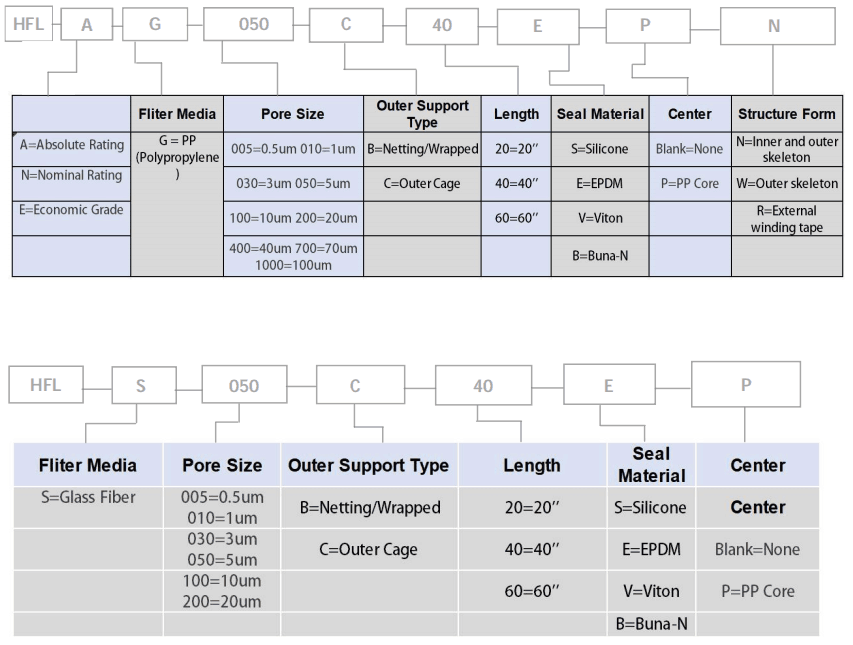

Ordering Information
