RO Security Filters Clogging Every Few Days? Identify the Root Cause Before Replacing Your Next Cartridge.
Reduce premature cartridge replacement,
stabilize ΔP growth and lower operating cost.
Compatible with Pall HFU620 / HFU640 / HFU660 systems.
Why Are Some RO Security Filters Clogging Too Fast?
UF instability
Fine colloids bypass downstream.
Ferric colloids
Iron particles rapidly blind cartridge surfaces.
Incorrect cartridge structure
Surface loading occurs before media depth is utilized.
What Operators Usually Observe
✔ ΔP rises within days
✔ Cartridge life becomes unpredictable
✔ Frequent shutdowns
✔ Surface fouling on cartridge exterior
✔ Increased operating cost
How High Flow Structure Helps
✔ Gradient Density Media
✔ Reinforced Core
✔ Large Filtration Area

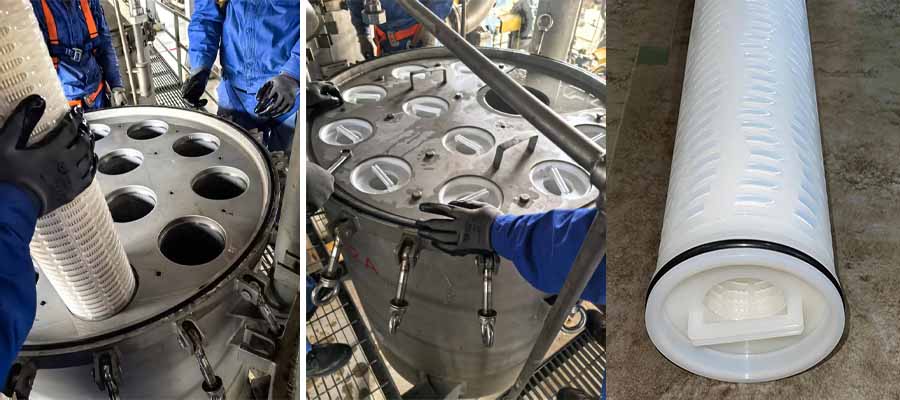

Designed for Direct Pall HFU Replacement
Compatibility Features
✔Same Flow Direction (Inside → Outside)
✔ Same Dimensional Fit
✔ Compatible Seal Configurations
✔ No Housing Modification Required
✔ Designed for Existing Pall High Flow Housings
Before ordering, we can verify dimensions, seal configuration and flow direction based on your current Pall part number or cartridge photo.
Where Are Pall HFU640 Filters Commonly Used?
SWRO Pretreatment
Problem:
Rapid ΔP rise after UF instability.
Solution:
Gradient media helps reduce surface blinding.
Typical Model:
HFU640 / HFU660
Power Plant
Problem:
Frequent replacement caused by condensate contamination.
Solution:
High dirt holding capacity extends service life.
Typical Model:
HFU640GF
Rich Amine Filtration
Problem:
Iron sulfide fouling causes rapid pressure increase.
Solution:
Depth-loading media improves solids distribution.
Typical Model:
HFU660GF
Industrial RO
Problem:
Unstable cartridge life during seasonal SDI fluctuations.
Solution:
Large filtration area improves operating stability.
Typical Model:
HFU640
Need to Verify Your Current Pall Model?
Direct compatibility and performance overview for common Pall High Flow cartridges.
| Benchmarking Metric | Pall Ultipleat® HFU640 | Ecofiltrone HFL Equivalent Series | Conclusion / Performance Match |
|---|---|---|---|
| Micron Rating (μm) | 0.5, 1.0, 4.5, 10, 20, 40, 70, 100 | Equivalent Match (1:1) | 99.98% Retention Efficiency Alignment |
| Filter Media | PP / Glass Fiber / Composite PP | Virgin Grade PP / GF / CAS | Compatible Material Options |
| Effective Filtration Area | ≥10 m² (per 40" element) | ≥10 m² (High Density) | Comparable Flow Characteristics |
| Max. Operating ΔP | 3.4 bar@82°C | 3.4 bar@82°C | Structural Integrity & Pressure Resistance |
| Mechanical Dimensions | 1016±2 mm (Length) / ϕ152.4 mm | 1016±2 mm / ϕ152.4 mm | 1:1 Dimensional Fit |
| Seal Materials | EPDM (J) / Fluorocarbon (V) | EPDM (E) / Viton (V) | Leak-proof Chemical Compatibility |
| Housing Compatibility | Original Pall High Flow Housings | Direct Drop-in Replacement | Zero Modification Required |
Designed to Reduce Replacement Risk
Real Application Examples
SWRO Plant – Saudi Arabia
Challenge:
Rapid ΔP rise after UF instability.
Result:
More stable pressure trend observed during evaluation.
Refinery – Middle East
Challenge:
Heavy fouling in rich amine filtration.
Result:
Improved dirt loading distribution during trial.
Power Plant – Southeast Asia
Challenge:
Frequent replacement due to condensate contamination.
Result:
Longer cartridge operating cycle achieved.
FAQ
Q1: Is this filter truly compatible with Pall HFU640 housings?
A:Yes.The cartridge dimensions, flow direction (inside-to-outside), seal configuration, and installation interface are engineered for direct replacement in Pall high flow housings without modification.
Q2: Will I need to modify my existing housing?
A:No.The filter is designed as a drop-in replacement for existing Pall high flow systems.
Q3: Will pressure drop increase faster than the original Pall filter?
A:Pressure drop behavior depends on feedwater quality and contamination load.
Our gradient-density media is designed to promote depth loading and help reduce premature surface blinding commonly seen in conventional cartridges.
Q4: Can the filtration efficiency match Pall Beta 5000 performance?
A:Equivalent filtration grades and media configurations are available.
Performance validation reports can be provided upon request.
Q5:Can I test samples before changing my entire system?
A:Yes.Most customers begin with one housing or a limited batch trial to verify compatibility and pressure drop performance.
Q6:How do I identify the correct replacement model?
A:Simply send:
- Current Pall part number
- Cartridge photo
- Housing model
Our engineers can verify compatibility.
Q7:What is the typical lead time?
A:Standard production lead time is usually 7–15 days depending on quantity.
Not Sure If Your Problem Is Cartridge Related? Send Your Current Part Number or System Information.
