High Flow Filter Cartridges for Industrial Water Treatment Systems
Ecofiltrone supplies high flow water filter cartridges and high flow filter elements for RO pretreatment, desalination, cooling water, power plant, refinery and wastewater treatment systems.
Find Your Application & Common Filtration Challenges
Different industries face different water quality challenges.
Select your application to see common problems and root causes.
Common Problems
✔ Cartridge clogs every 3–7 days
✔ Rapid differential pressure rise
✔ UF instability and breakthrough
✔ Ferric colloid contamination
✔ High replacement frequency
Root Cause
Fine colloids and silt density index (SDI) fluctuations cause surface blinding and prevent full utilization of the filter media depth.
Typical Contaminants
Silt, clay, algae, biofouling, ferric hydroxide, colloids
Size Range: 0.1 – 10 μm
Common Problems
✔ Frequent cartridge replacement
✔ Iron oxide (rust) contamination
✔ Condensate polishing instability
✔ High differential pressure
✔ Increased maintenance workload
Root Cause
Iron oxide and corrosion products accumulate quickly and block the filter media, leading to rapid pressure drop and shortened filter life.
Typical Contaminants
Iron oxide, rust, silica, scale, fine particles
Size Range: 0.5 – 20 μm
Common Problems
✔ Filter life less than 24 hours
✔ Iron sulfide (FeS) fouling
✔ Sticky hydrocarbon contamination
✔ High pressure drop
✔ Unstable system operation
Root Cause
Fine iron sulfide and hydrocarbon contaminants block the pore structure and cause rapid pressure rise and premature filter failure.
Typical Contaminants
Iron sulfide, hydrocarbons, scale, solids
Size Range: 0.1 – 5 μm
Common Problems
✔ Seasonal filter life fluctuations
✔ SDI instability
✔ High cartridge replacement cost
✔ Frequent changeouts
✔ RO membrane fouling risk
Root Cause
Variable feed water quality and inconsistent pretreatment performance lead to uneven contaminant loading and short filter life.
Typical Contaminants
Silt, organics, colloids, biological matter
Size Range: 0.1 – 10 μm
How High Flow Filter Structure Helps Solve These Challenges
Although contaminants differ, the filtration mechanism is often the same:
premature surface loading, unstable pressure drop, and insufficient dirt holding capacity.

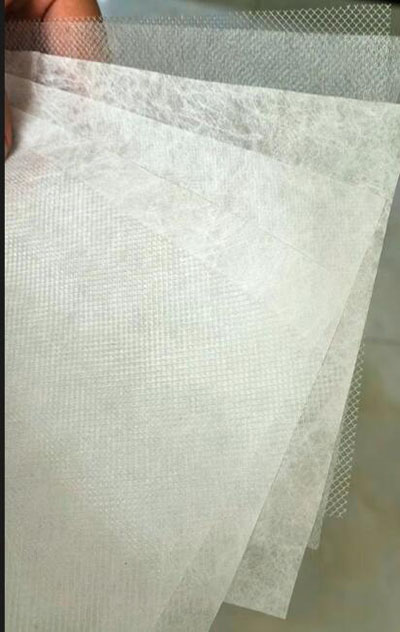

01 Gradient Density Media
What It Solves
Surface blinding
Rapid ΔP rise
Uneven contaminant loading
Contaminants are distributed throughout the media depth rather than accumulating on the surface.

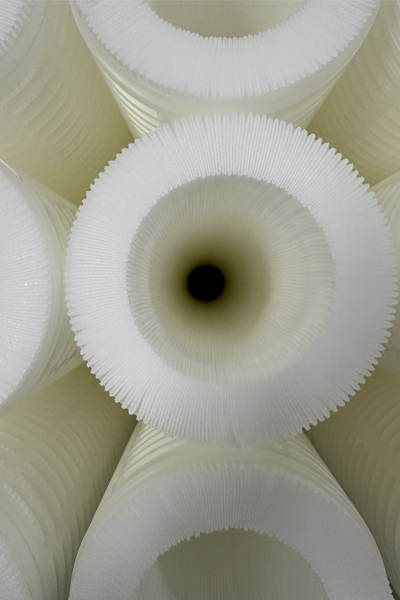

02 Large Effective Filtration Area
What It Solves
Frequent cartridge replacement
Short service life
High maintenance cost
More filtration area provides higher dirt holding capacity and longer operating cycles.
03 Reinforced Core Structure
What It Solves
High differential pressure
Pressure surges
Media deformation
The reinforced core maintains cartridge integrity under demanding operating conditions.
Benefits Across Different Applications
Application
Main Benefit
Better colloid distribution and more stable pretreatment filtration
Longer condensate filter life and improved system reliability
More stable pressure trend and reduced filter changeouts
Reduced replacement frequency and lower operating cost
Every System Is Different. Let Us Help You Find the Right Solution.
Contact us today for tailored recommendations based on your specific water quality, operating conditions, and filtration goals.
Designed for Direct Pall /3M/Parker Replacement
Drop-in replacement designed for existing Pall high flow housings.

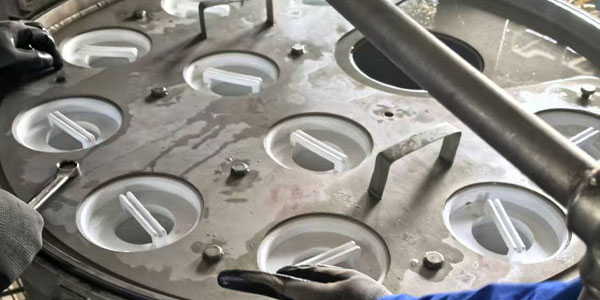

Actual Housing Installation Diagram

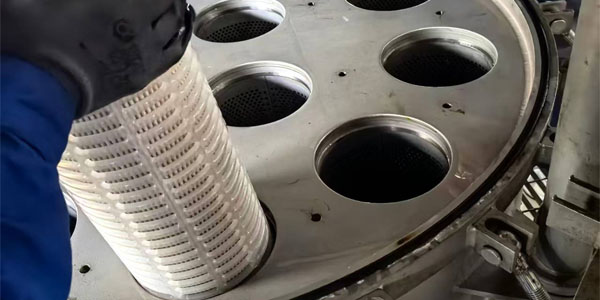

Actual Filter Cartridge Diagram

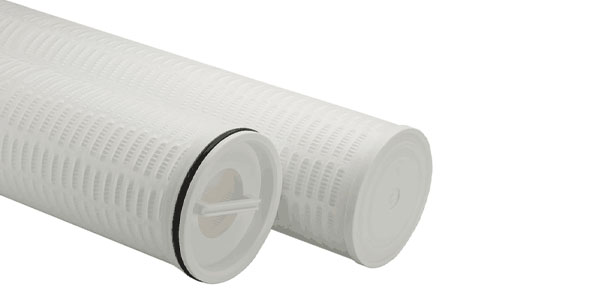

Close-up Diagram of Filter Cartridge End Cap
Before You Replace
Same Flow Direction
Same Dimensions
Same Seal Configuration
Same Housing Interface
No Housing Modification Required
Suitable for Existing Pall HFU Systems
Verify dimensions, seal configuration, and flow direction before ordering.
Not Sure About Compatibility?
Send us your current Pall part number and housing information.
Our engineers will confirm the best replacement for your system.
Proven Performance. Trusted by Global Customers.
Real projects. Real results. Hear from customers who solved their filtration challenges with our high flow filter cartridges.

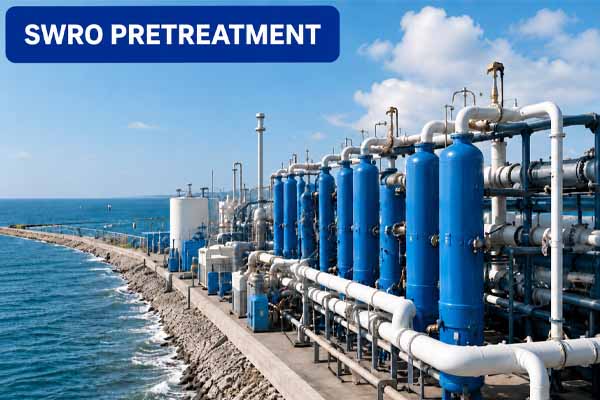

Saudi Arabia

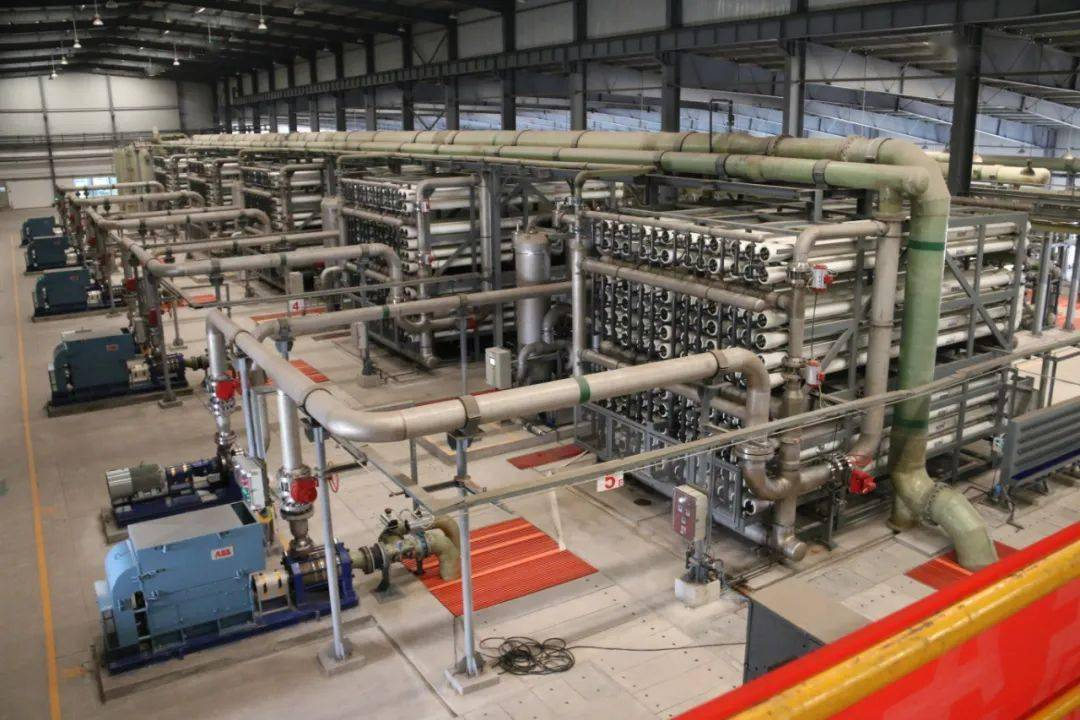

SWRO Desalination Plant
Challenge
Rapid differential pressure (ΔP) rise after UF instability caused frequent cartridge change and increased operating cost.
Solution
High Flow Filter Cartridge (HFU660)
20 μm, PP, 40″
Results
+90%
Service life extended
-35%
Filter replacement frequency
-28%
Operating costs
Customer Feedback
“The filters perform very well in our SWRO pretreatment. Longer life and more stable pressure trend.”
— Maintenance Manager
Egypt

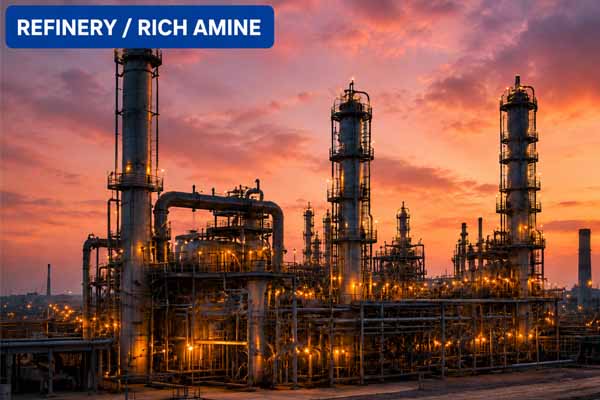

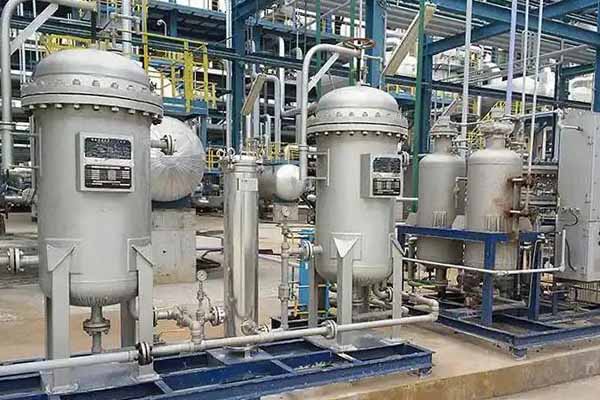

Refinery – Rich Amine Unit
Challenge
Severe iron sulfide (FeS) fouling resulted in filter life less than 24 hours and unstable system operation.
Solution
High Flow Filter Cartridge (HFU660GF)
5 μm, Glass Fiber, 40″
Results
>4x
Longer filter life
-60%
Changeouts reduced
More stable
pressure trend
Customer Feedback
“Since switching to your high flow filters, our filter life increased significantly. The system is running much more stable.”
— Process Engineer
Indonesia

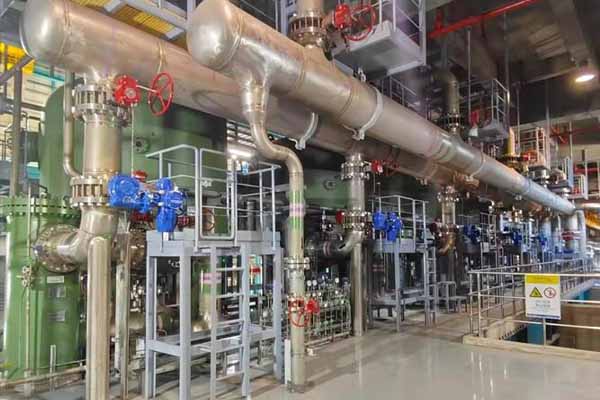

Coal-Fired Power Plant
Challenge
Condensate contained high level of iron oxide and corrosion products, causing frequent cartridge replacement.
Solution
High Flow Filter Cartridge (HFU640GF)
10 μm, Glass Fiber, 40″
Results
+70%
Service life extended
-45%
Replacement frequency
Improved
condensate quality
Customer Feedback
“Excellent dirt holding capacity and consistent performance. We are very satisfied with the results.”
— Plant Engineer
Product Coverage & Replacement Options
Compatible with Pall, 3M, Parker, Pentair and other High Flow Systems.
1 . Brand Coverage
Direct replacement available
No housing modification required
Cross-reference support available
2 . Product Matrix
Length
20” /40”/60”/80”
Micron Rating
0.5/ 1/ 2/ 5/ 10/20/40/70/100um
Media
PP (Polypropylene) / Glass Fiber
Seal Material
EPDM / Viton / NBR / Silicone
Flow Direction
Inside → Outside
Applications
SWRO / Power / Refinery / Industrial RO
3 . Manufacturing Capability
Standard Replacement
✔ HFU620 / HFU640 / HFU660
✔ 3M HF40PP Series
✔ ParMax Series
✔ Pall HF Series

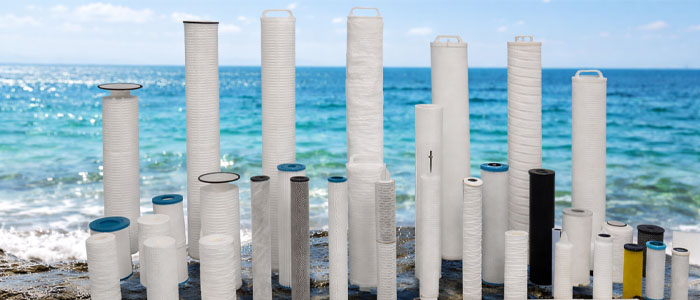

OEM Manufacturing
✔ Custom dimensions
✔ Custom end caps
✔ Custom micron rating
✔ Private label available

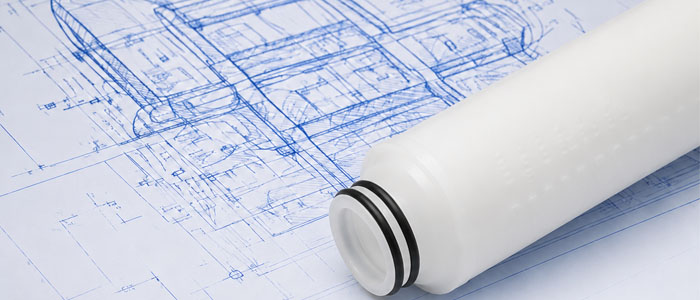

ODM Engineering Support
✔ Application analysis
✔ Media optimization
✔ System matching
✔ Technical support
4 . Cross Reference Lookup
Not Sure Which Model You Need?
Send us any part number, we will help you find the right replacement.
| Existing Brand | Example Part Number |
|---|---|
| Pall | HFU640UY020J |
| 3M | HF40PP005A01 |
| Parker | ParMax 1000 |
| Pentair | Pentek HF |
| Others | Any High Flow Cartridge |
Send Us Any Part Number
Our engineers will review and respond within 12 hours.
Compatibility Check
Material Verification
Seal Verification
Replacement Recommendation
High Quality Materials
Reliable performance in demanding conditions
Strict Quality Control
ISO 9001 certified manufacturing
Global Supply Capability
Fast delivery, stable supply, worldwide support
