Alternative to Pall® Ultipleat High Flow Filter Cartridges | Ecofiltrone
Premium replacement for Pall HFU640, HFU660, and HFU40 series. Features unique one-piece outer cage and Beta 5000 efficiency for RO pretreatment and power plants.

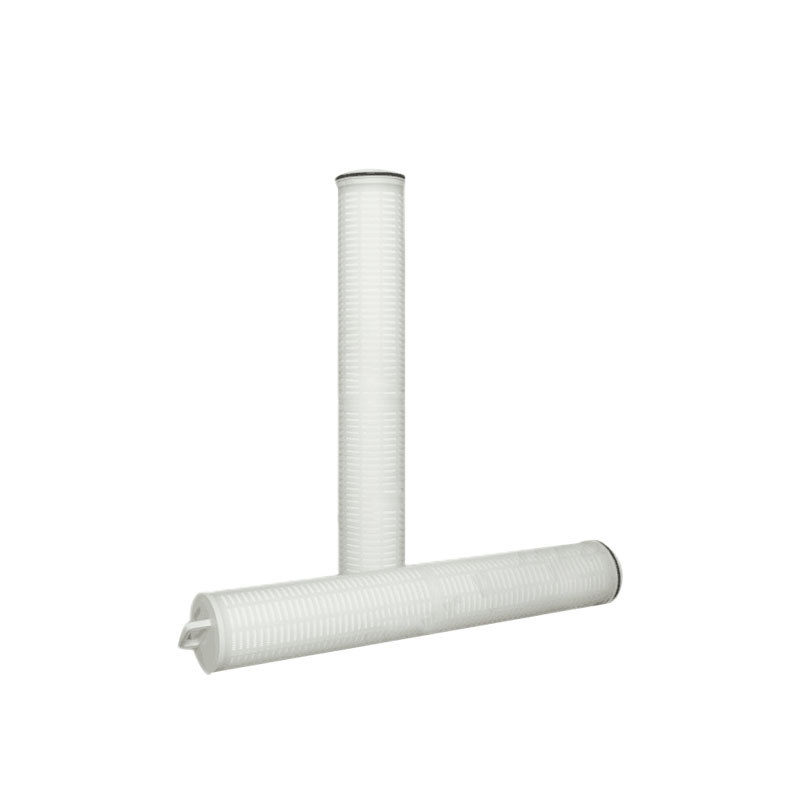

Ecofiltrone™ HFL series represents the pinnacle of industrial filtration, specifically engineered as a high-performance alternative to Pall® Ultipleat High Flow filter cartridges. Our production line ensures that every unit is a seamless “plug-and-play” swap for existing Pall filter housings, maintaining the exact dimensions and sealing requirements.
Comprehensive Cross-Reference List: We provide exact equivalents for the following Pall part numbers:
100% Compatible with Pall®
| Specifications | Details |
|---|---|
| Standard Series | HFU640, HFU660, HFU620, HFU40, HFU20 |
| Common Micron Ratings |
|
| Sealing Configurations |
|
Why do global engineers choose Ecofiltrone over other generic alternatives?
The secret lies in our Integral One-Piece Hard Cage. While most domestic competitors use multi-segmented cages that are prone to thermal expansion and structural failure, our HFL series features a continuous, high-strength polypropylene outer cage.
Key Technical Advantages:
Inside-to-Outside Flow: This Pall-style flow direction ensures all captured contaminants remain trapped inside the cartridge during change-outs, preventing downstream contamination.
Gradient Aperture Media: We utilize multi-layer polypropylene fibers with a decreasing pore size, providing exceptional dirt-holding capacity and a longer service life than standard pleated filters.
Beta 5000 Efficiency: Our media is laboratory-tested to achieve 99.98% efficiency at its rated micron level, providing absolute protection for sensitive RO membranes.
100% Thermal Bonding: No glues, resins, or binders are used, ensuring zero chemical extractables in high-purity water applications.
Primary Applications
Ecofiltrone™ HFL series is built for the world’s most demanding industrial environments. We understand the high-stakes nature of continuous filtration systems where downtime is not an option.
Seawater Desalination (SWRO): Perfect for pre-filtration in large-scale desalination plants across the Middle East (Saudi Arabia, UAE), protecting RO membranes from sand and organic matter.

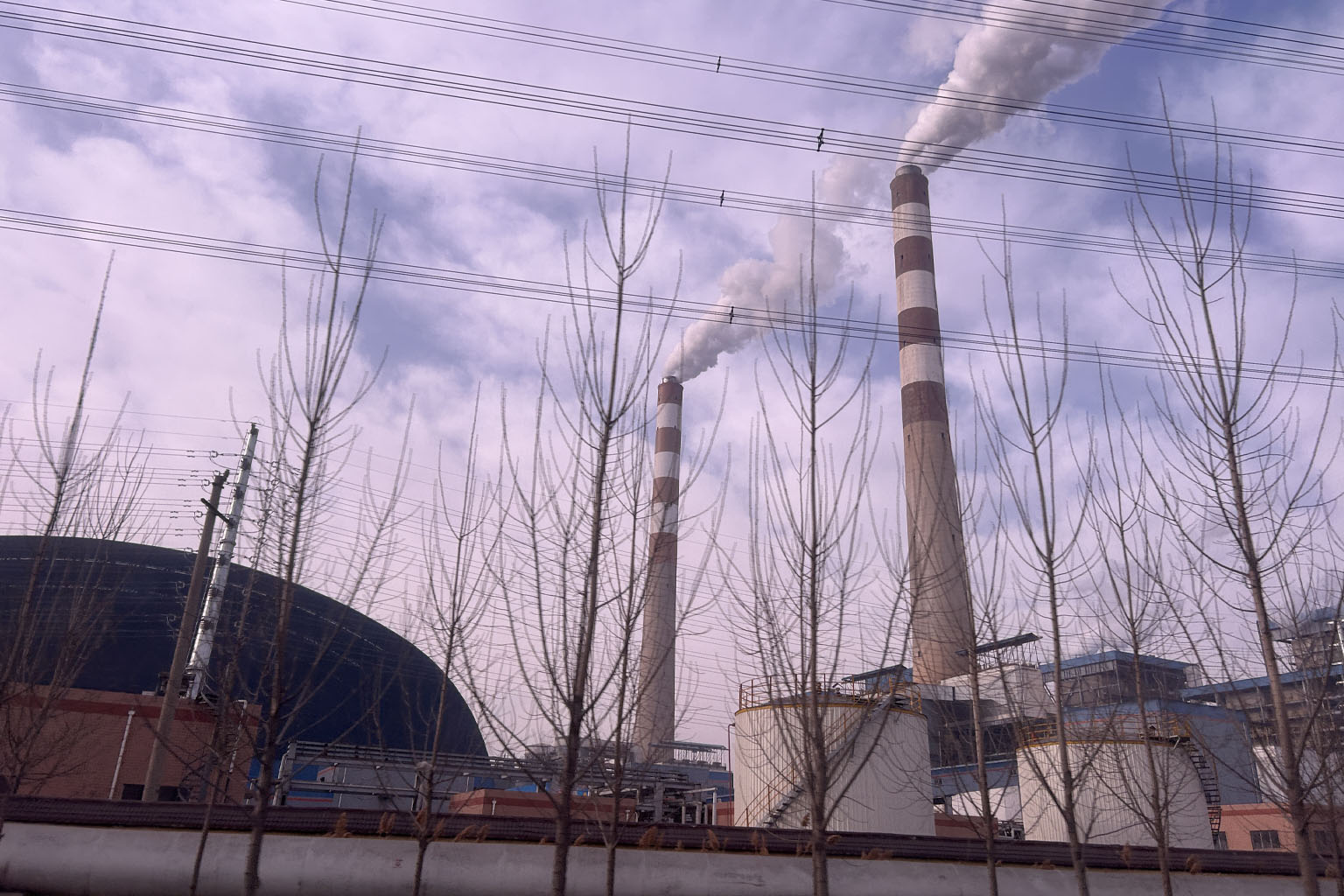

Power Generation: Essential for Condensate Polishing and boiler make-up water treatment, where high flow rates and low pressure drops are critical for energy efficiency.
Petrochemicals: Reliable filtration for process water, solvents, and brine, ensuring the purity of high-value chemical products.
Ready to Optimize Your Filtration System?
Save 40%-60% compared to OEM Pall® prices.
Fast Global Shipping with factory-direct support.
Technical Support: Need a specific cross-reference for a complex Pall part number?
